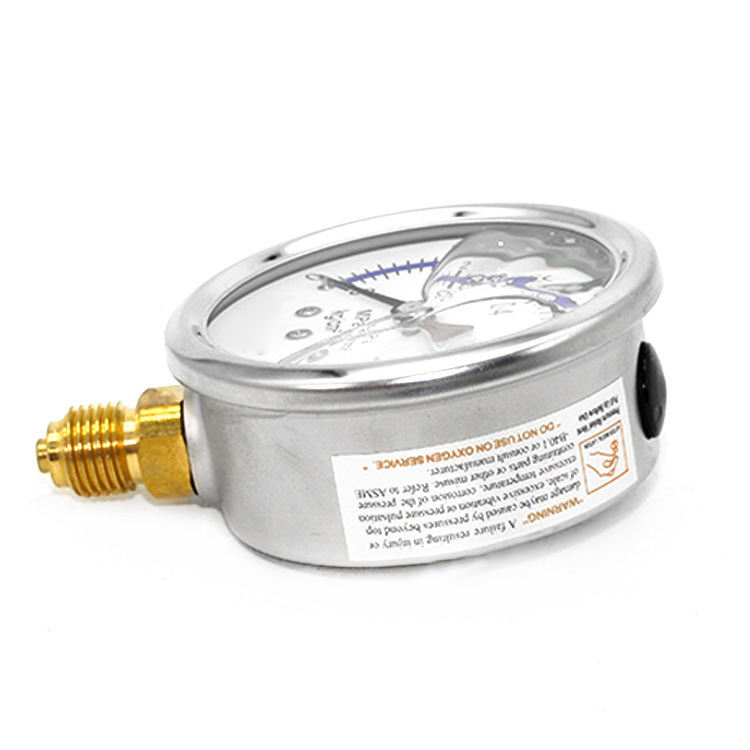

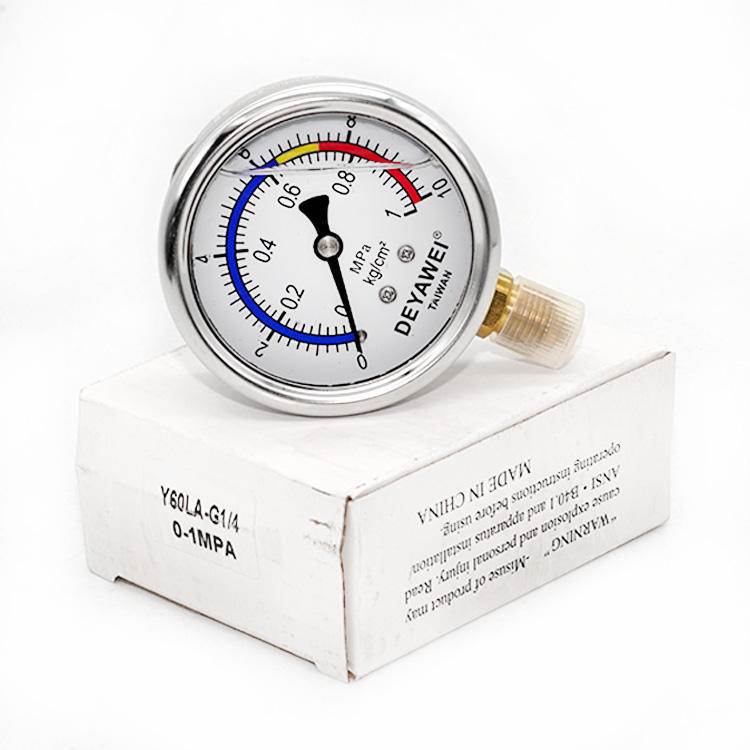

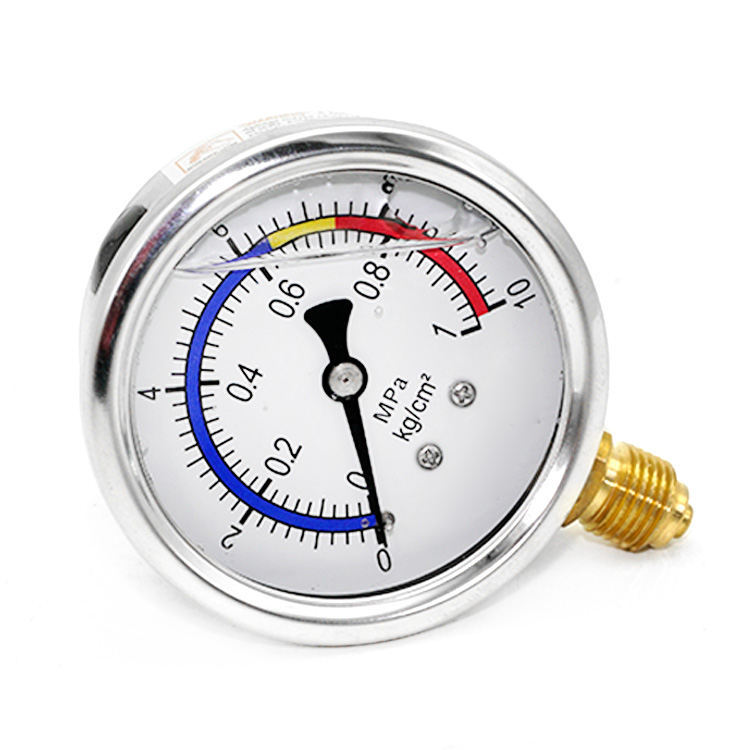

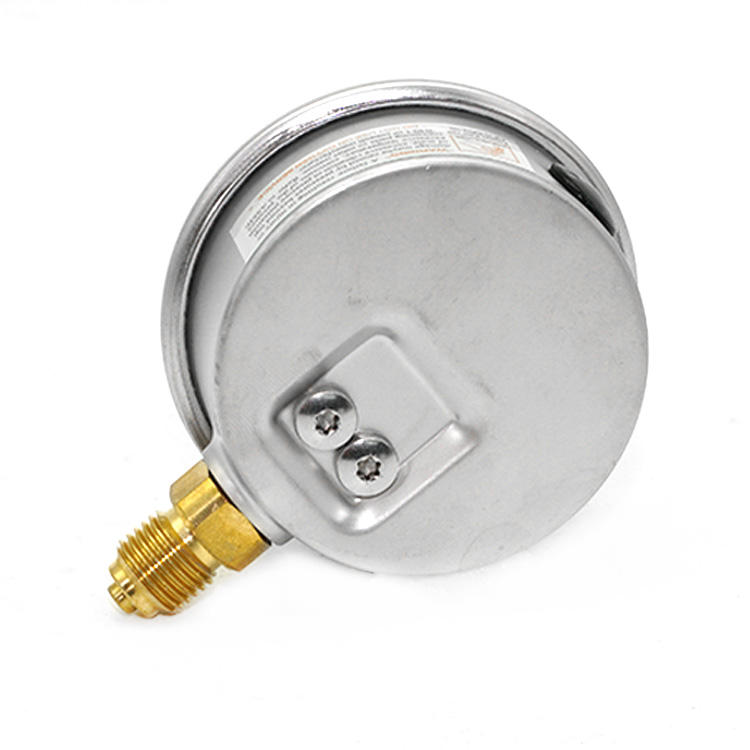

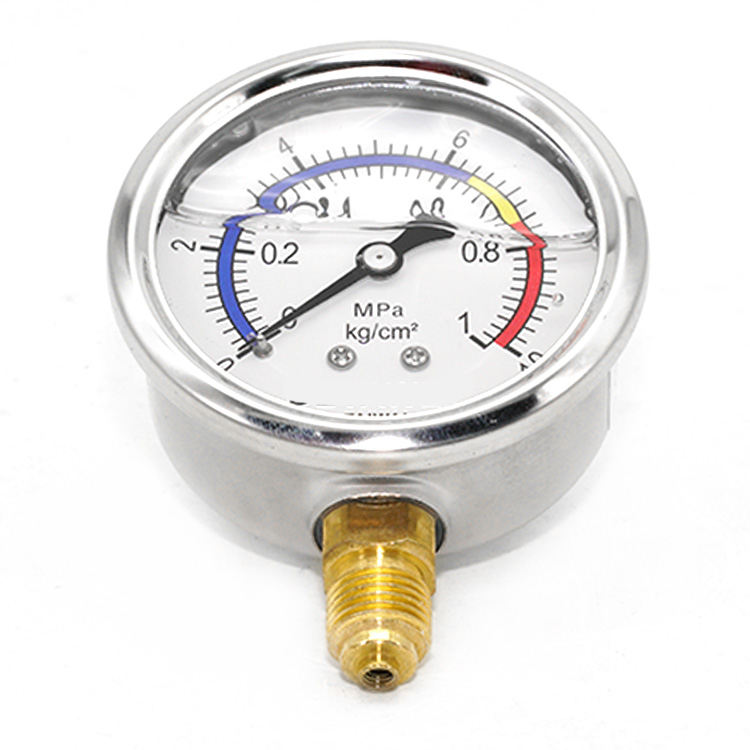

Liquid Pressure Gauge And Stainless Steel Gauge

Name: Liquid Pressure Gauge And Stainless Steel Gauge
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

GET A QUOTE

Description

Specification

Product Name	Pressure Gauge
Model	Y60LA-G1/4
Material	Stainless steel housing
Dial Diameter	60mm
Range	0-1MPA
Accuracy	2.5
Connection Thread	G1/4
Advantage	High precision, shock-proof and durable
Application	Injection molding, die casting machine, hydraulic press, rubber machine and other hydraulic machinery equipment
Customized Type	According to the actual thread size and pressure range

A liquid pressure gauge is an instrument used to measure pressure changes in a liquid system. The body is usually made of high-strength, corrosion-resistant materials, such as stainless steel, to ensure stable operation in harsh environments. The main body is provided with a standard interface or flange, which is convenient for direct connection with the pipeline system to realize the transmission of pressure signals. The connection part is usually sealed to prevent media leakage while ensuring measurement accuracy.

Principle
The operating principle of the liquid pressure gauge is based on the deformation characteristics of the elastic element. When the liquid enters the pressure gauge through the pipe, its pressure acts on the measuring element, causing it to deform. This deformation is transmitted to the display system through the transmission mechanism, which drives the pointer to move or the digital display to update, and finally reflects the current pressure value.

Application
Liquid pressure gauges are widely used in petroleum, chemical, metallurgy, electric power, water treatment and other industries, for measuring and controlling the pressure in liquid pipelines, containers and equipment. Whether it is the medium under normal temperature and pressure or the special medium under high temperature and high pressure, you can find the suitable liquid pressure gauge for accurate measurement.

Constitute
The liquid pressure gauge is made of a precise combination of a number of parts, including:
1、Measuring element:
As mentioned earlier, it is the core component of pressure measurement.
2、Transmission mechanism:
Converts the deformation of the measuring element into an indication of the pointer or digital display.
3、Display system:
Including pointer, dial or digital display, etc., used to display measurement results.
4、Enclosures and connectors:
Protect internal components and provide connections to ductwork.
5、Seal:
Ensure the tightness of the pressure gauge to prevent media leakage.
6、Adjustment and calibration device (some models) :
For adjusting the measuring range and calibrating the pressure gauge.
