Product Name
|

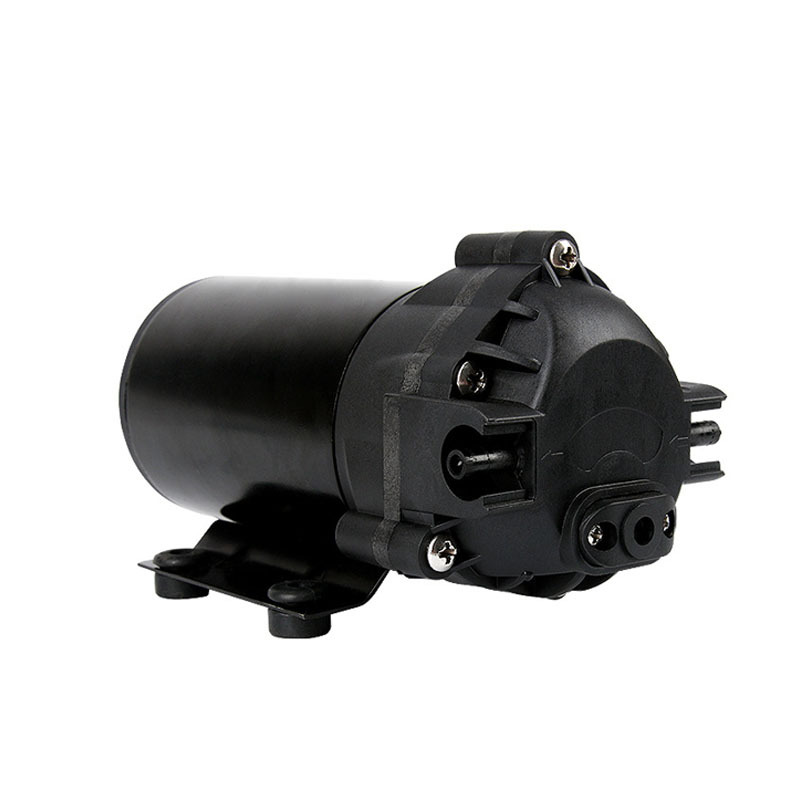

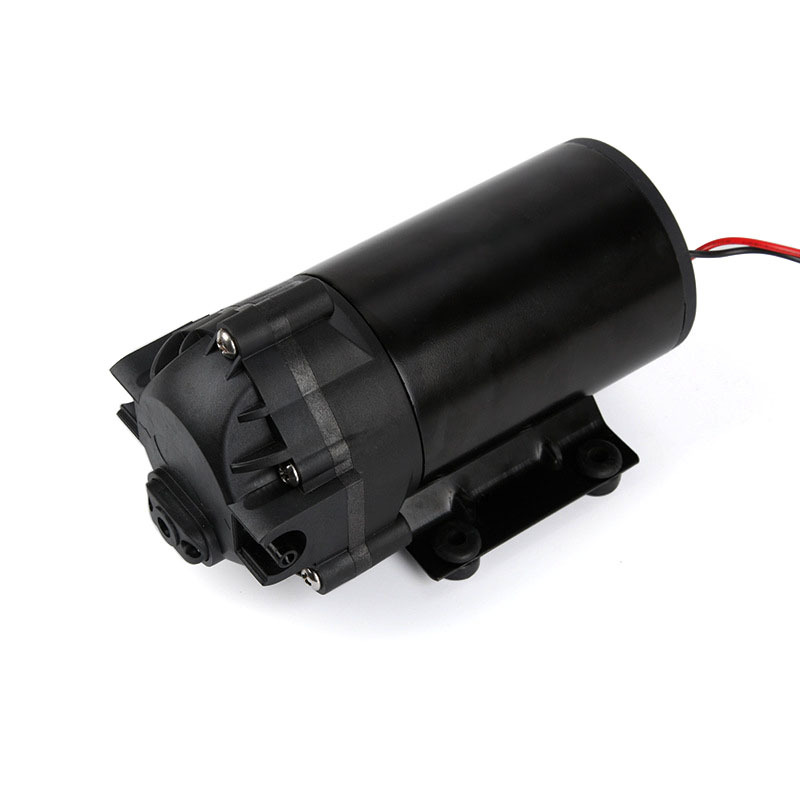

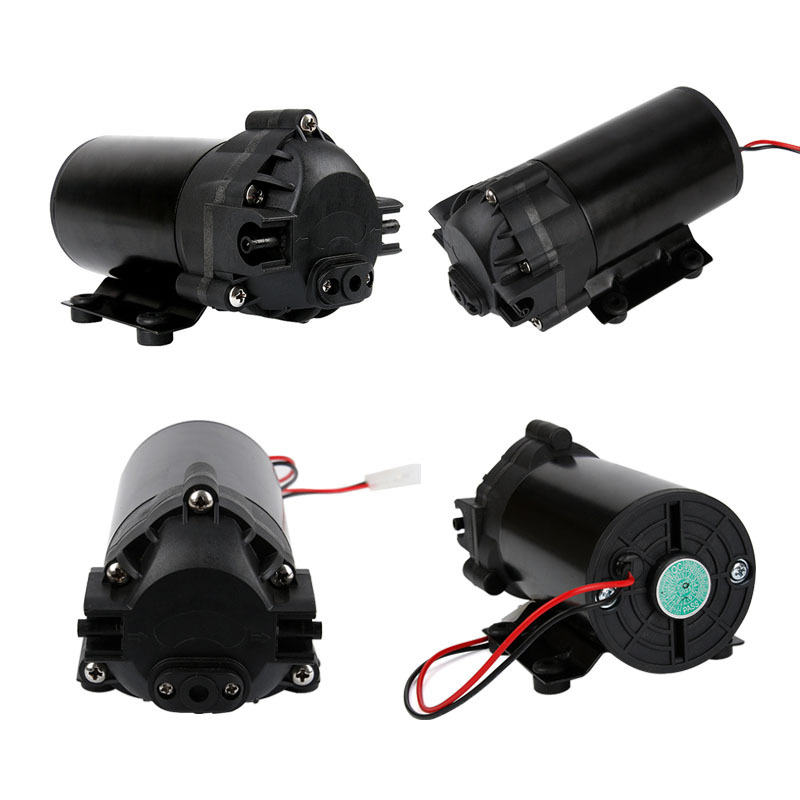

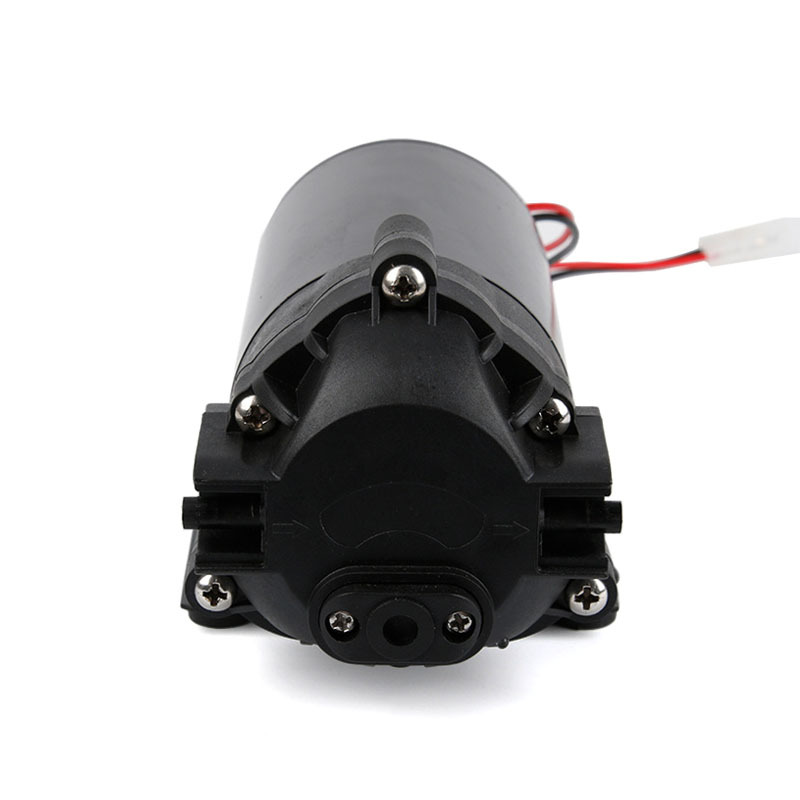

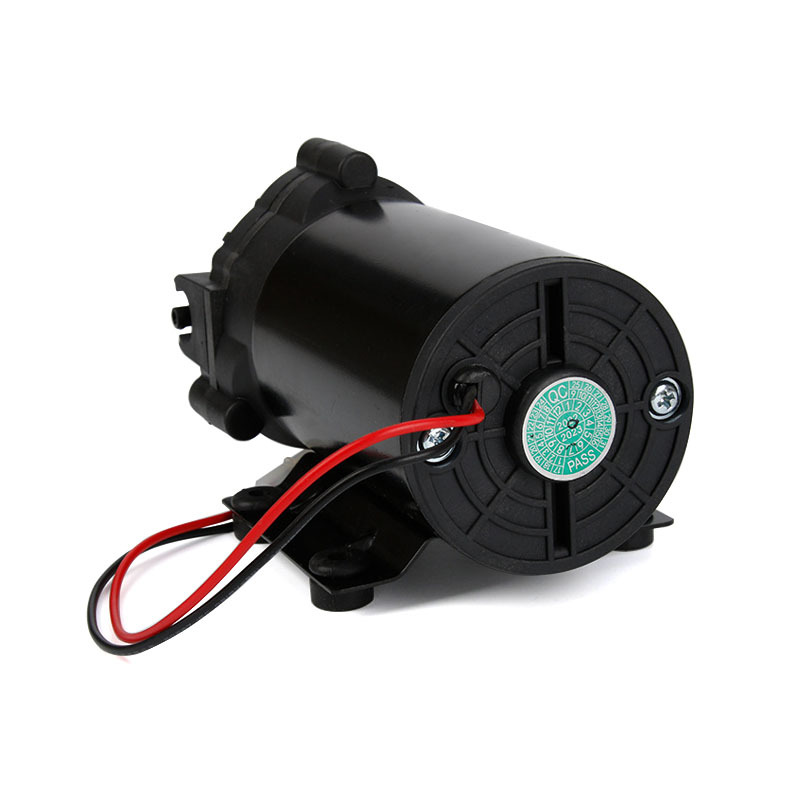

DC Diaphragm Pump
|
|
Model
|
VB7603-800
|
|
Pump Body Material
|
Engineering plastic
|
|

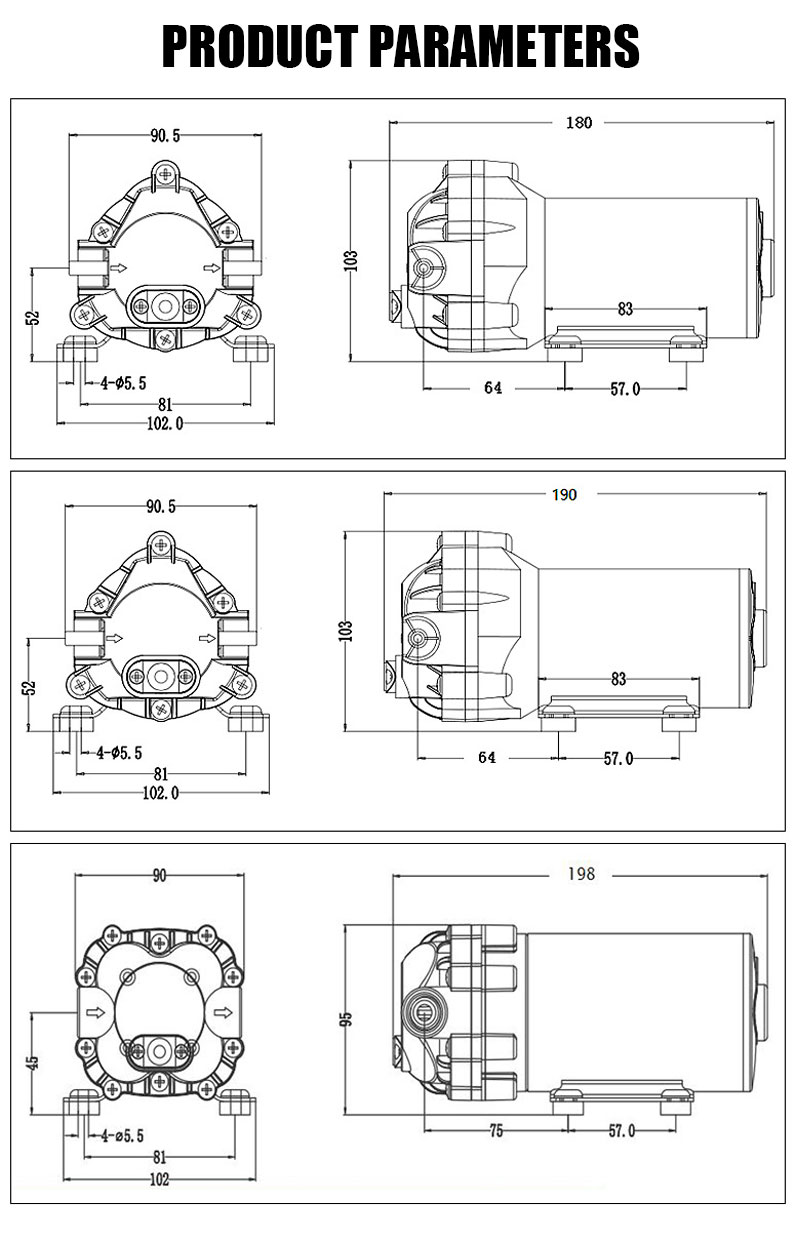

Size
|
10*8*16cm
|
|
Weight
|
2.2kg
|
|
Specification
|
Rate Voltage: 24 VDC; Max. Flow: 4 L/Min; Max. Lift: 130 M; Current: 4.9A; Power: 117.6W
|
|
IP Protection Level
|
IP5X
|
|
Insulation Class
|
Class180
|
|
Ambient Temperature
|
-40 ~ 45°C
|
|
Medium Temperature
|
0 ~ 60°C
|
|
Liquid
|
Water, beverage etc.
|
|
Cable Length
|
28cm
|
|
Certifications
|
CQC, CE, ROHS etc.
|
|
Typical Applications
|
Medical equipment, Refrigeration equipment, Water purification equipment, Atomizing equipment.
|
|
Customized
|
Yes
|
With its advanced diaphragm technology, this pump offers unmatched efficiency, ensuring maximum water delivery with minimal energy consumption. Ideal for a wide range of agricultural applications, from small gardens to large-scale farming operations.
