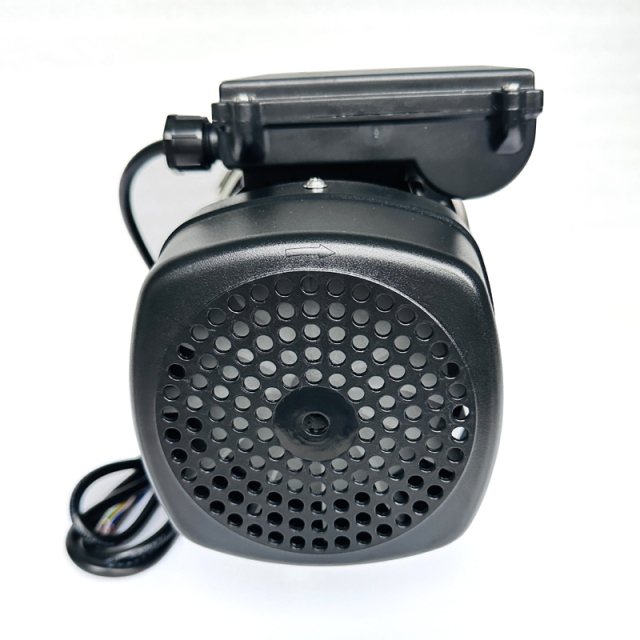

Name: Stainless Steel Centrifugal Pump and Multistage Horizontal Centrifugal Pump
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

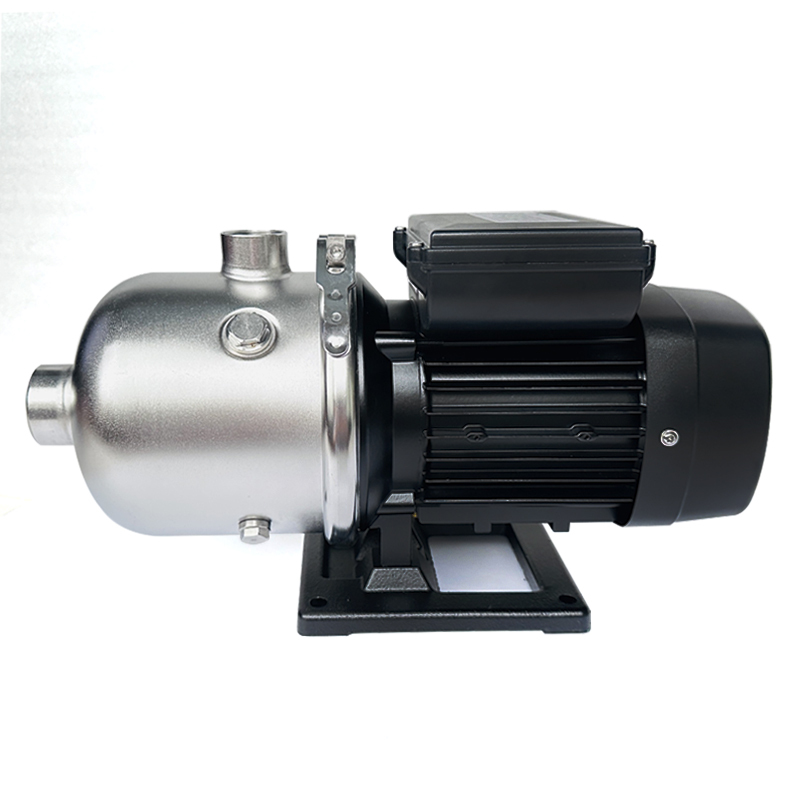

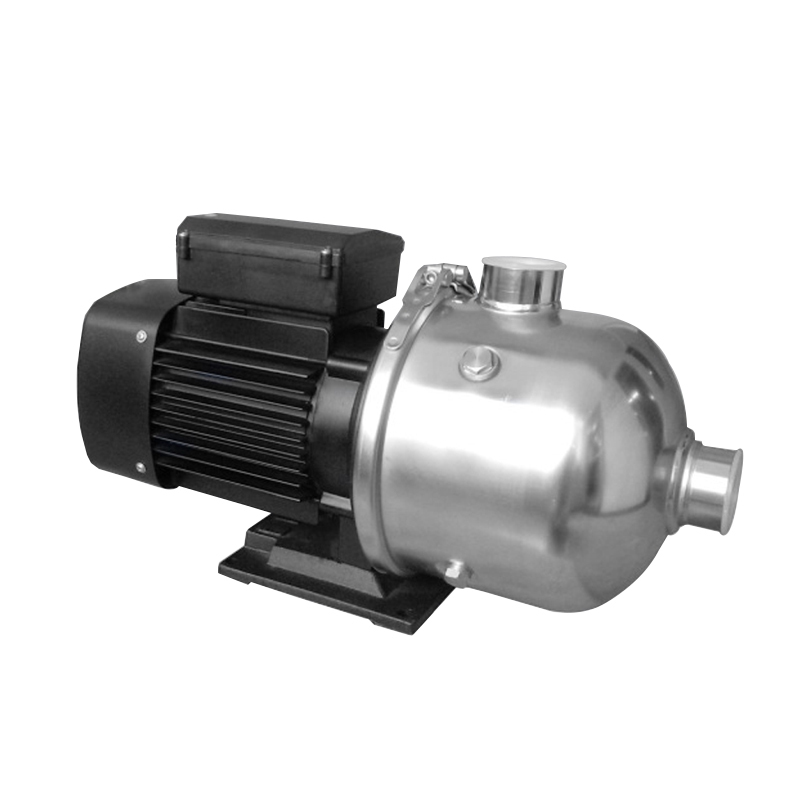

Stainless Steel Centrifugal Pump and Multistage Horizontal Centrifugal Pump

The centrifugal pump is designed according to the principle of centrifugal force, the high-speed rotating impeller blade drives the water to rotate, the water is thrown out, so as to achieve the purpose of conveying. There are many kinds of centrifugal pumps, which can be divided into civil and industrial pumps from the use; From the transport medium can be divided into clean pumps, impurity pumps, corrosion resistant pumps and so on.

Description

Specification

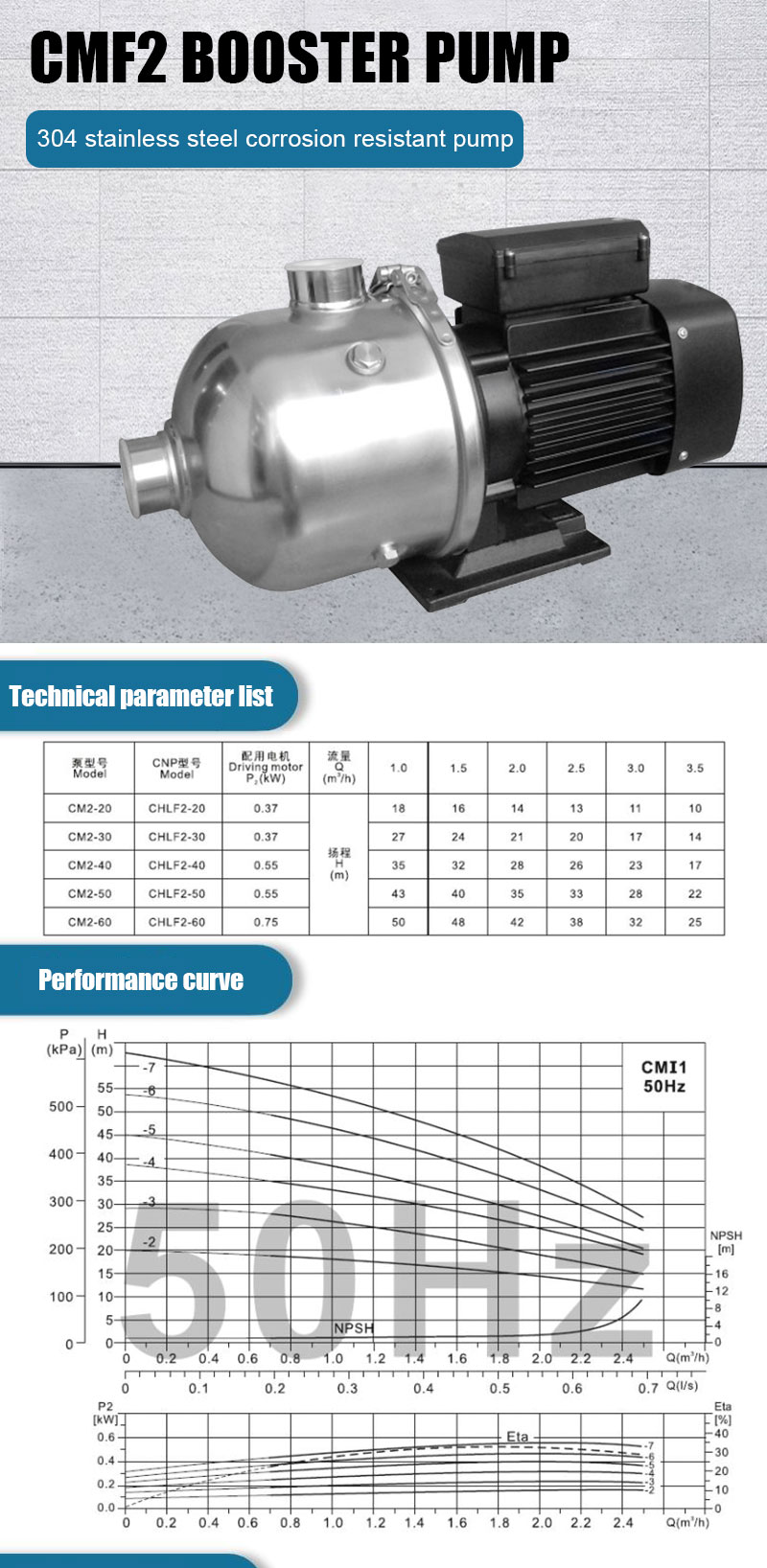

Product name	Centrifugal Booster pump
Material	Stainless steel
Thermal protector	With thermal protector (single phase)
Insulation class	F class
Protection class	IP55
Medium temperature	(-20~+70°℃) (+15~+70°℃) (+70~+104°℃)
Ambient temperature	≤50° C
Maximum working pressure	1.0MPa
Maximum lift	38M
Limit lift	30M
Limit head voltage	200-240V

Main Feature
1. Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller, to ensure smooth operation, no vibration.
2. Water-tight: cemented carbide seals of different materials ensure that there is no leakage in the transmission of different media.
3. Low noise: two low noise bearings supported by the pump, smooth operation, in addition to the motor weak sound, basically no noise.
4. Low failure rate: simple and reasonable structure, the key parts of the international first-class quality supporting, the whole machine trouble-free working time is greatly improved.
5. Easy maintenance: replace seals, bearings, simple and convenient.
6. Covers more province: the exit can be left, right, upward three directions, the pipeline layout installation, saving space.

Classification
ISW horizontal water centrifugal pump
For transporting water and other liquids with physical and chemical properties similar to water, suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment supporting, the use temperature t≤80℃.

ISWR type horizontal hot water pump
Widely used in: metallurgy, chemical industry, textile, paper making and hotels and other boiler hot water pressurization circulation and urban heating system, iswr type use temperature t≤120℃.

ISWH type horizontal chemical pump
Transport does not contain solid particles, corrosive, viscosity similar to water liquid, suitable for petroleum, chemical, metallurgy, power, paper, food and pharmaceutical and synthetic fibers and other sectors, the use temperature of -20℃ ~ +120℃.

ISWB horizontal pipeline oil pump
Transport gasoline, kerosene, diesel and other oil products or flammable, explosive liquid, the temperature of the transport medium is -20 ~ +120℃.

Product Use
1. Pipeline centrifugal pump, for the transport of water and other liquids similar to physical and chemical properties of water, suitable for industrial and urban water supply and drainage, high-rise building pressurization water supply, garden irrigation, fire pressurization and equipment supporting, the use of temperature T is less than or equal to 80 degrees Celsius.
2. Hot water (high temperature) circulation pump is widely used in energy, metallurgy, chemical, textile, paper, and hotels and other boilers high temperature hot water pressurization circulation and urban heating system circulation pump, ISWR temperature T is less than or equal to 120 degrees Celsius, WRG temperature T is less than or equal to 240 degrees Celsius.
3. Horizontal chemical pump, for the transport of solid particles, corrosive, viscosity similar to water liquid, suitable for petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fibers and other departments, the use of temperature T: negative 20 degrees Celsius to 120 degrees Celsius.
4. Horizontal oil pump, for the transport of gasoline, diesel, kerosene and other petroleum products, the use of temperature T: 20 degrees Celsius to 120 degrees Celsius.

Product Advantages

Corrosion-Resistant Design: Built from high-grade stainless steel, the CMF2 pump ensures longevity even in corrosive environments.
Enhanced Pressure Performance: Delivers reliable pressure boosting, improving water flow efficiency for various applications.
Energy-Efficient: Designed to operate at optimal energy efficiency, reducing operational costs over time.
Compact & Easy to Install: Its compact design makes it ideal for space-constrained installations, and it's easy to set up and operate.
Versatile Usage: Can be applied across a wide range of industries, from water systems to industrial fluid handling, providing effective solutions in diverse sectors.

Get in Touch Now! For the latest product updates and pricing details, feel free to reach out to us. Contact us today for a customized quote tailored to your needs!
