Product Name
|

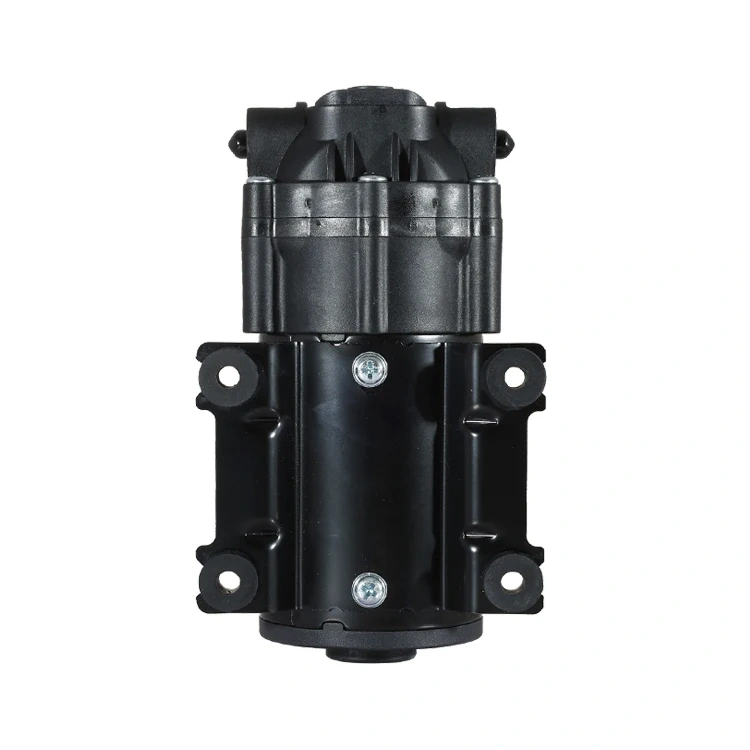

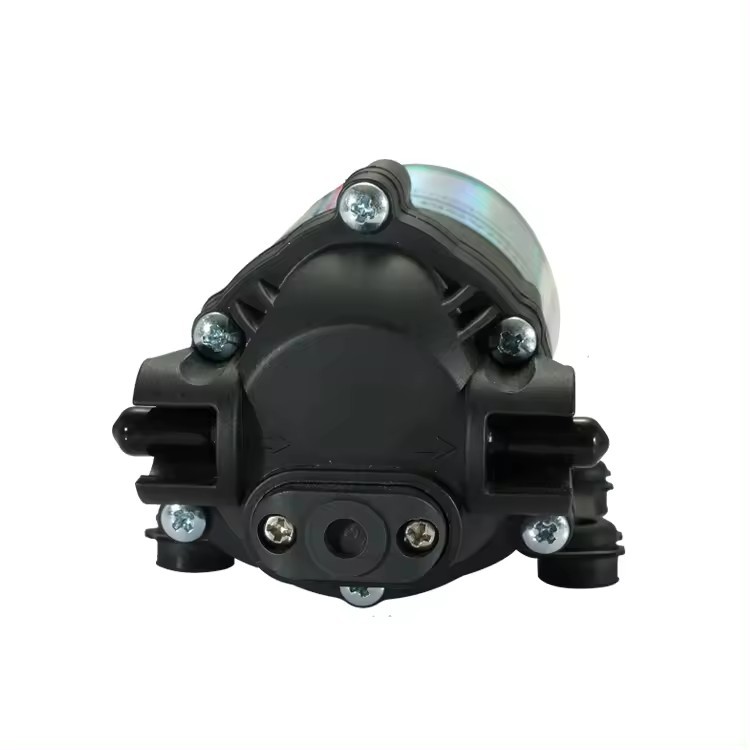

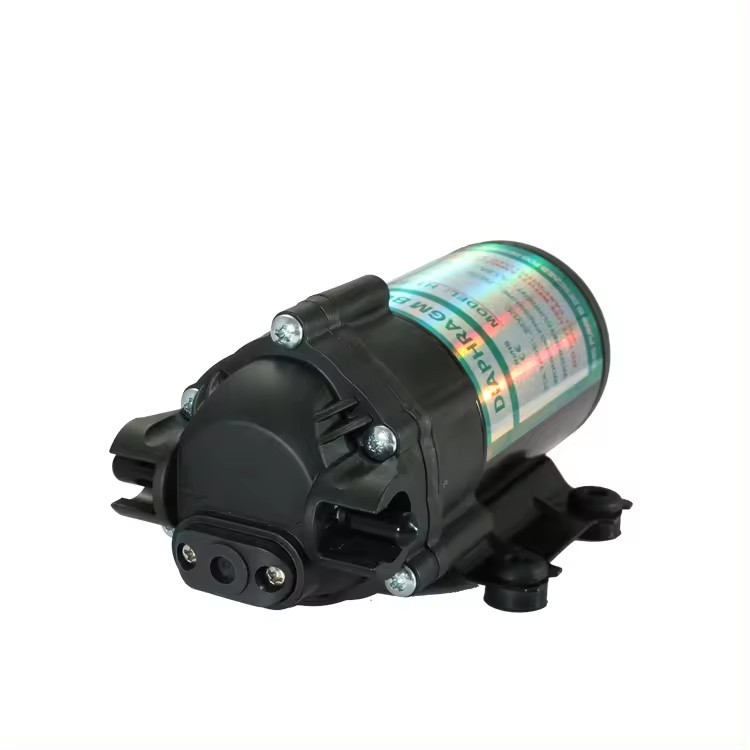

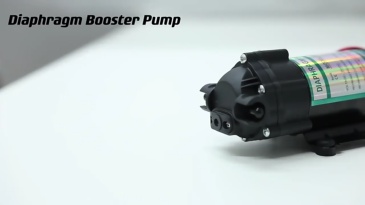

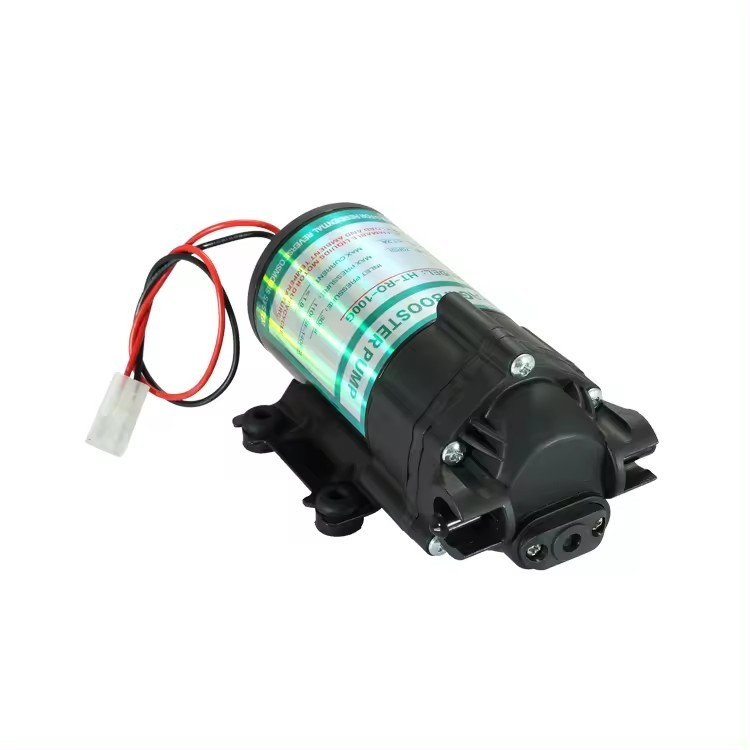

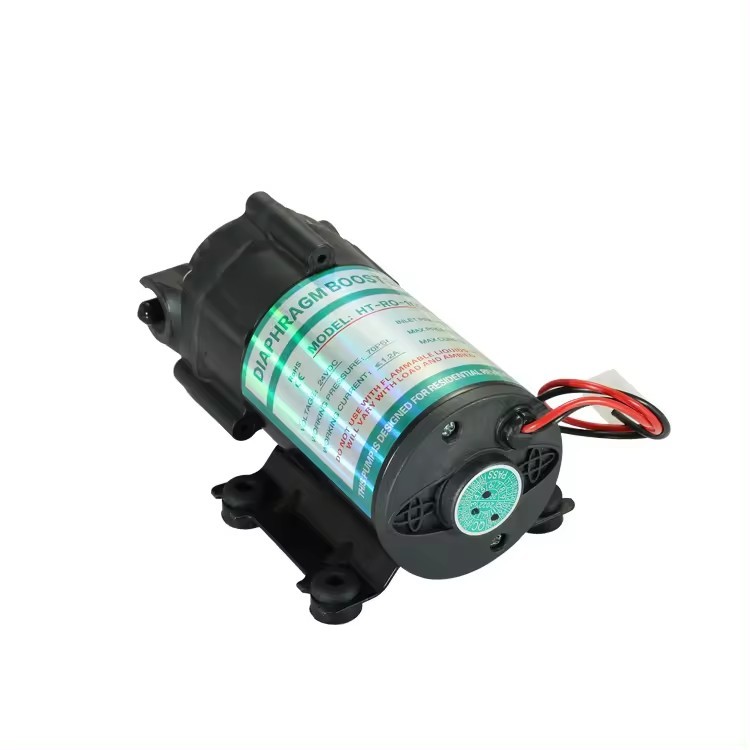

Diaphragm Booster Pump
|
|
Model
|
VB6601-75
|
|
Pump Body Material
|
Engineering plastic
|
|
Size
|
10*8*16cm
|
|
Weight
|
1.26kg
|
|
Specification
|
Rate Voltage: 24 VDC; Max. Flow: 1.5 L/Min; Max. Lift: 80 M; Current: 1A; Power: 24W.
|
|
IP Protection Level
|
IP5X
|
|
Insulation Class
|
Class180
|
|
Ambient Temperature
|
-40 ~ 45°C
|
|
Medium Temperature
|
0 ~ 60°C
|
|
Liquid
|
Water, beverage etc.
|
|

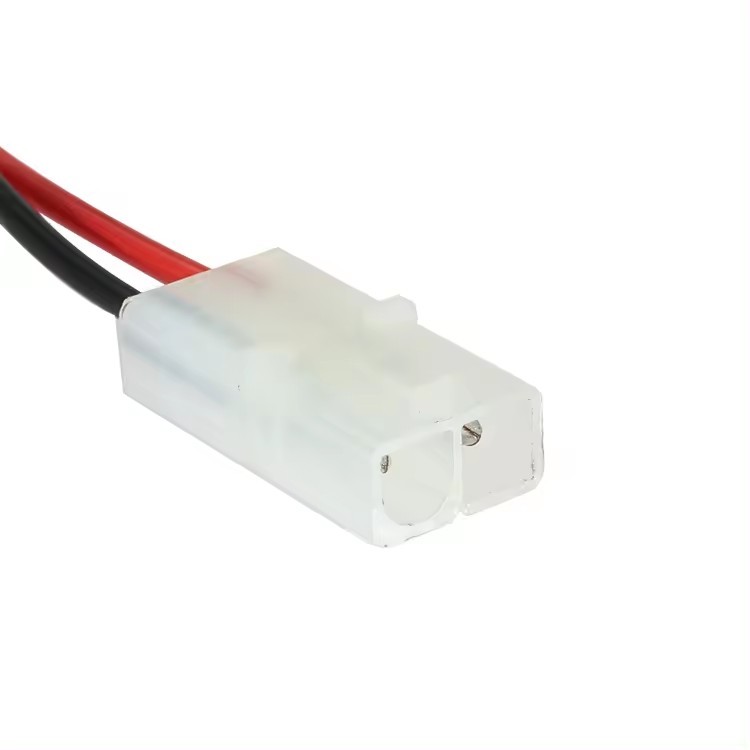

Cable Length
|
28cm
|
|
Certifications
|
CQC, CE, ROHS etc.
|
|
Typical Applications
|
Medical equipment, Refrigeration equipment, Water purification equipment, Atomizing equipment.
|
|
Customized
|
Yes
|
