Specification
| Rated Voltage | AC100V / 110V / 115V / 120V ± 10% 50/60 Hz Single phase AC200V / 220V / 230V / 240V ± 10% 50/60 Hz Single phase |
|
| Input | 4 - 20 mA.DC (STD) 4 - 12 / 12 - 20 mA. DC (Options) |
|
| Angle Control | 0 - 90° (Fully Open ~ Fully Closed) | |
| Output Shaft Torque | 5 kgf.m | 10 kgf.m |
| Action Time | 15 / 12.5s （50/60Hz） | 30 / 25s （50/60Hz） |
| Output | 4~20mA.DC (STD) Open-close voltage-free contact output (option) |
|
| Protector | Built-in overheat protector (120℃) Open and close position limit switch (standard equipment) Switch bilateral mechanical limit block (standard equipment) Fully open/fully closed overtorque protector (optional) |
|
| Manual Operation | Manual crank (standard accessory) Clutch handwheel (optional) |
|

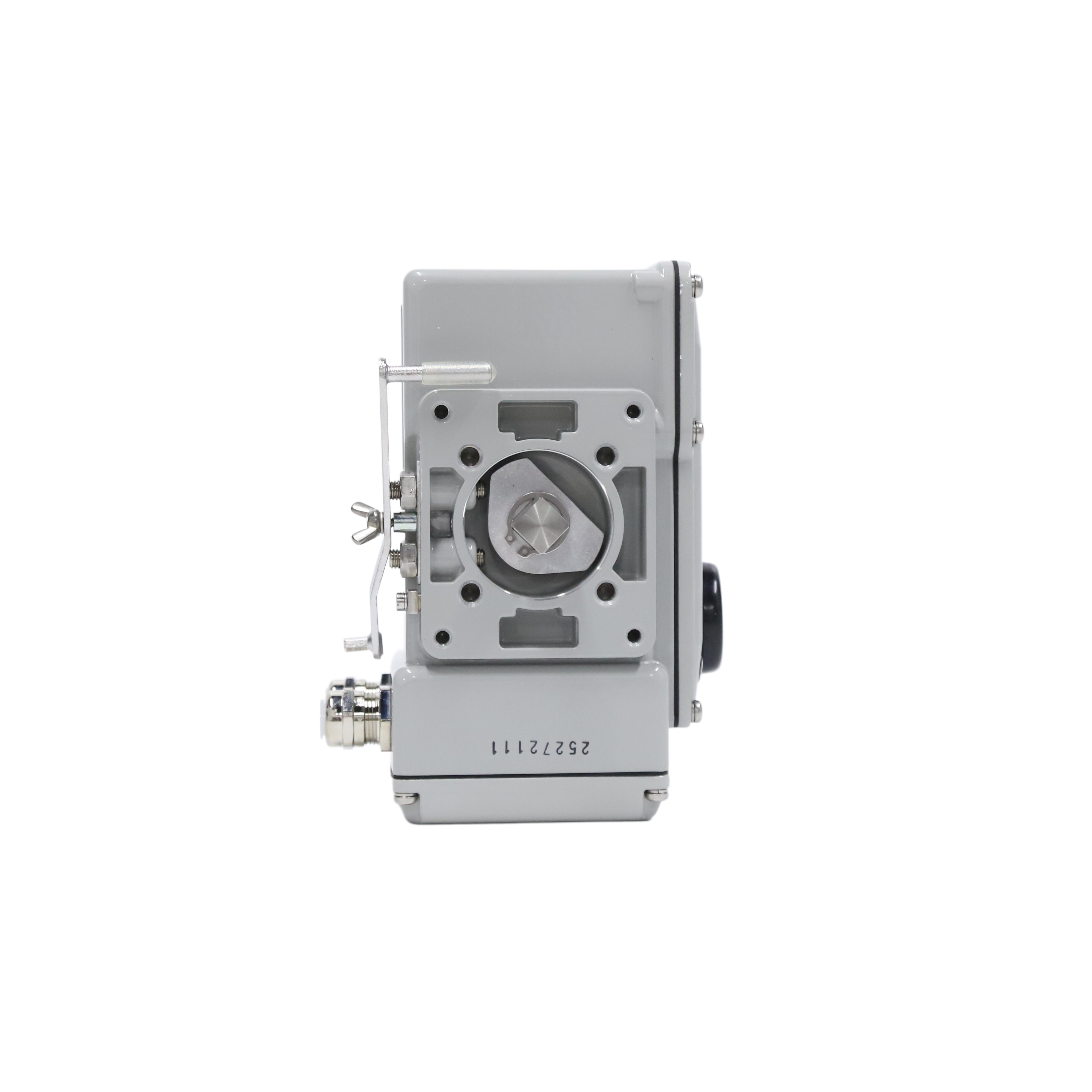

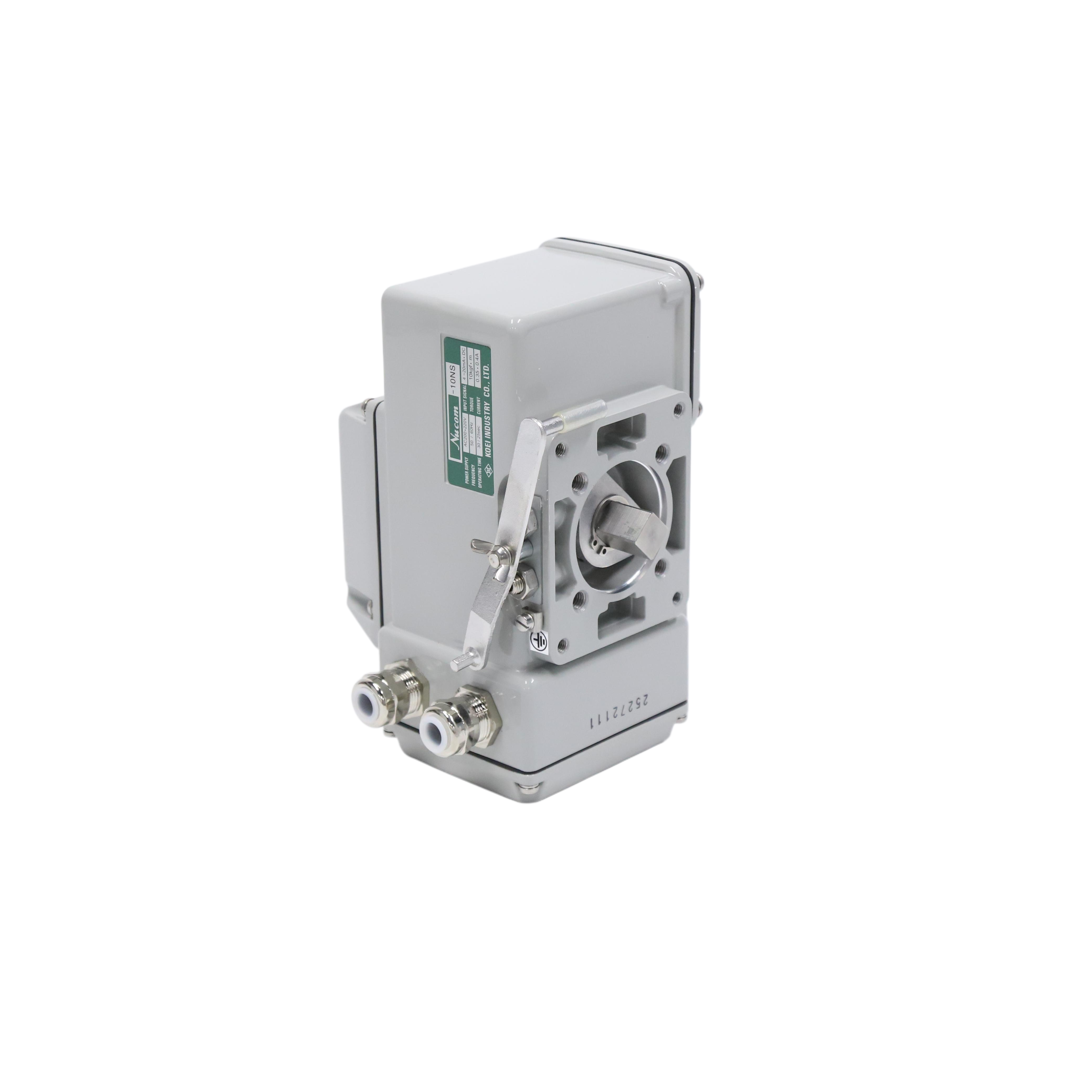

| Output Shaft Shape |
Square axis (standard) |
|
| Paint Color | Electrostatic spray paint/grey (Monsell chromatography N-6) | |
| Weight | 4.4 kg | |
Application
Industry coverage: petrochemicals, power, pharmaceuticals, water treatment, shipping, food processing, building automation, etc
Compatible valves: Ball valves, butterfly valves and other rotary valves, supporting linear or rotary drive.
Typical scenarios: Air conditioning cooling water regulation, automatic temperature control systems, industrial process control
and other fields that require high-precision positioning.
About Us
JIEXI – Specialist in Marine and Industrial Instrumentation
JIEXI Fast Marine Service (Guangzhou) Co., Ltd, operating as JIEXI, is a respected supplier of marine and industrial-grade equipment, including temperature controllers, electric actuators, thermocouples, pressure gauges, and flow meters. Supported by over 30 years of shipyard technical experience and a 5,000 m² warehouse with advanced WMS logistics, we ensure fast delivery to major ports across China. JIEXI delivers comprehensive services—including product sourcing, maintenance, and system overhauls—to reduce downtime and improve fleet performance worldwide through dependable instrumentation and expert after-sales support.
Contact JIEXI today to explore how our electric actuator enhances your temperature control system with precision and reliability.
FAQ
Which controllers are compatible with this actuator?
It integrates seamlessly with JIEXI temperature controller modules and similar industrial control systems.
Can it support continuous cyclical valve movement?
Yes, it is designed for durable service in continuous thermal control applications.
Is installation complex?
No, its modular design enables straightforward installation and coupling with control valves.
Can it retrofit existing manual valve systems?
Yes, it enables upgrading manual valves to electric actuation with minimal hardware change.
Is it suitable for marine or industrial environments?
Yes, constructed for rugged conditions typical of marine and industrial thermal systems.
