Product Name
|

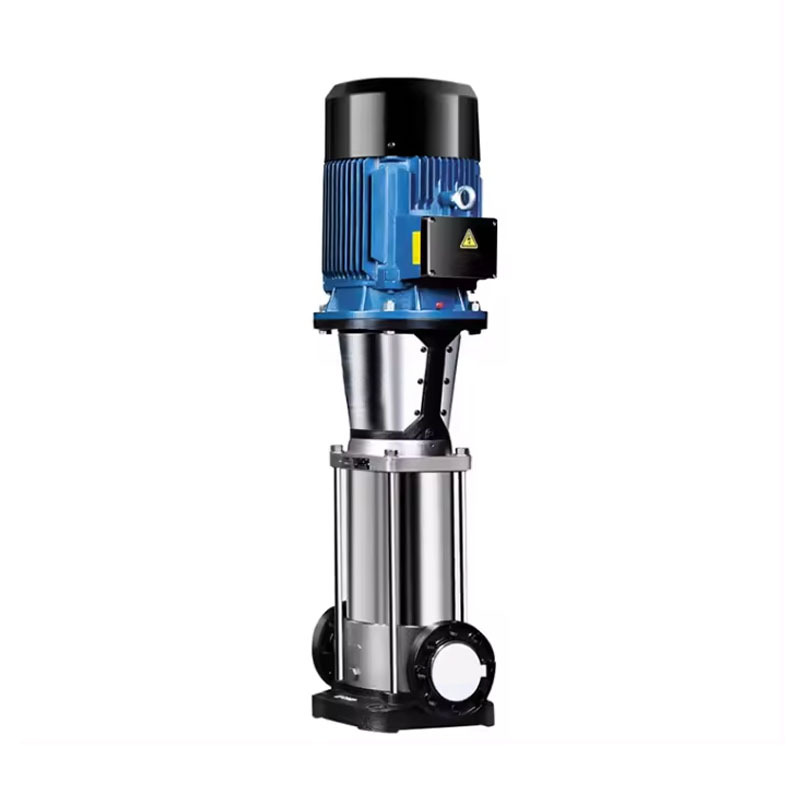

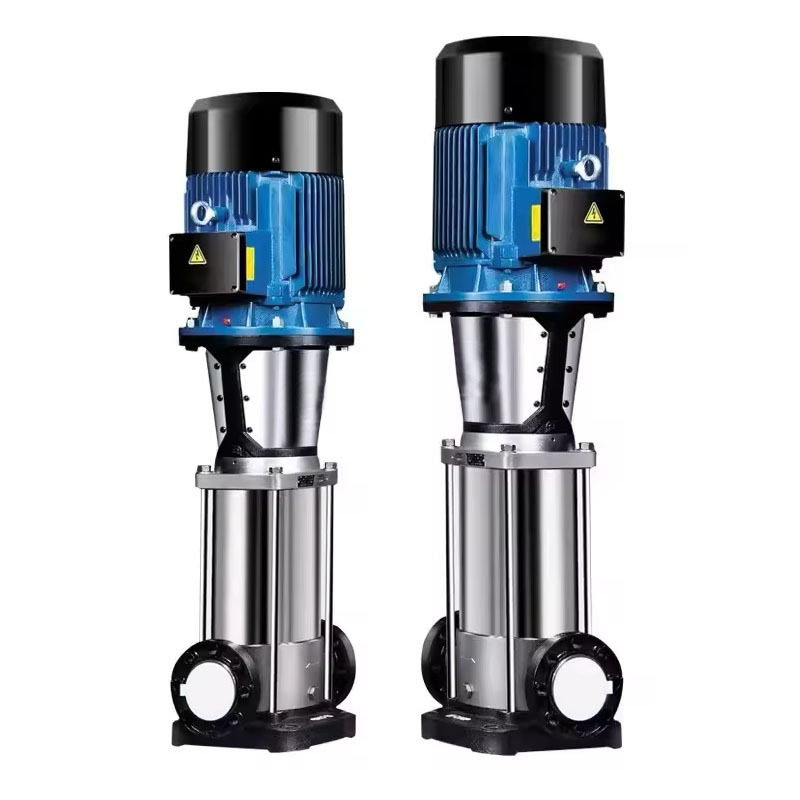

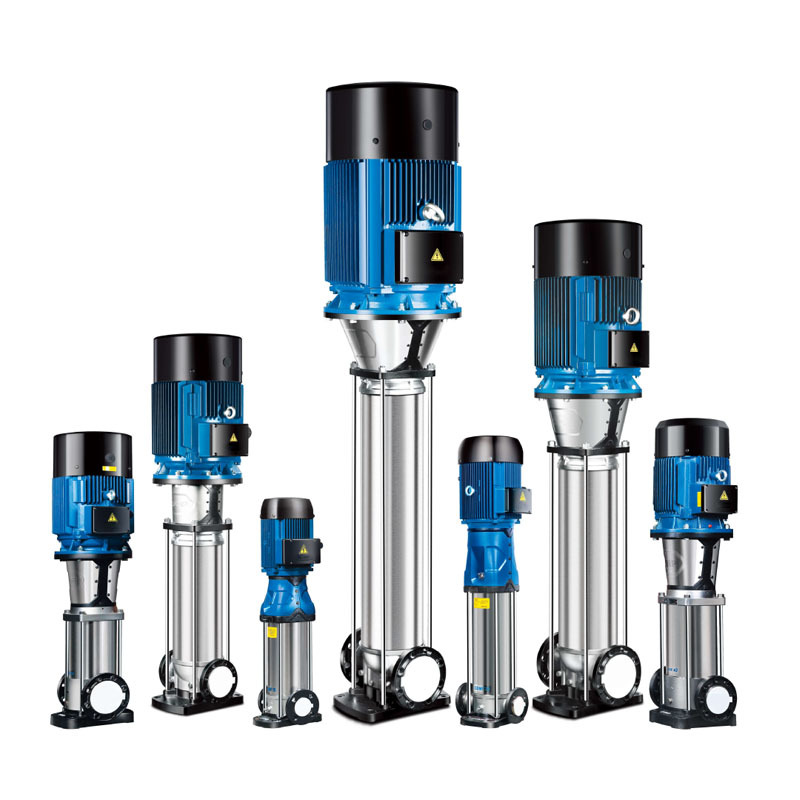

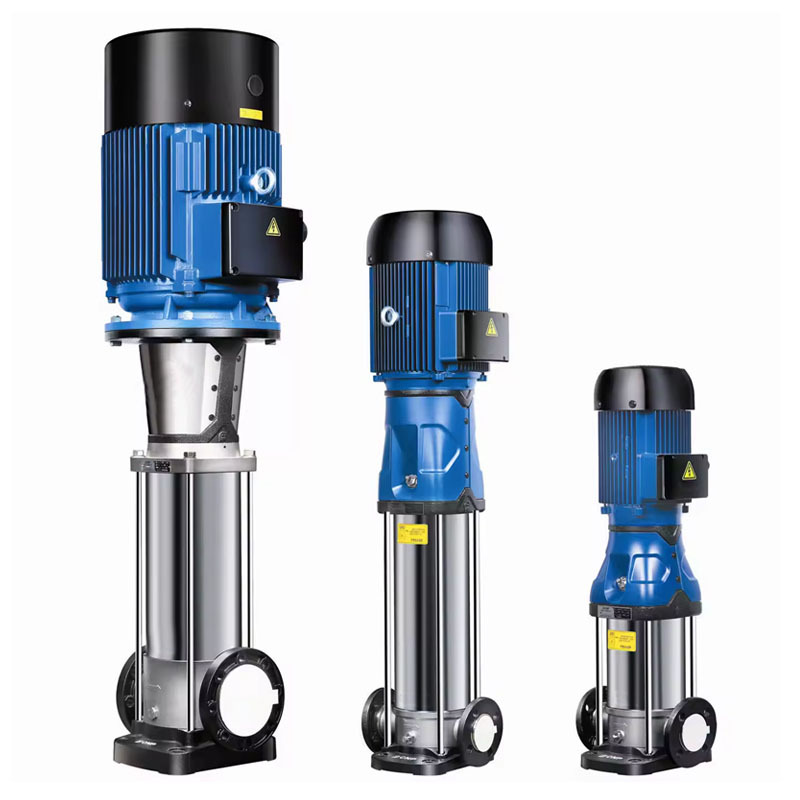

Non-self-priming Vertical Multistage Centrifugal Pump
|
|
Material
|
Cast iron, stainless steel
|
|
Model
|
CDM is suitable for non-corrosive liquids, CDMF is suitable for slightly corrosive liquids
|
|
Motor
|
Completely enclosed, air-cooled bipolar standard motor,
Protection class: IP55 Insulation class: F Standard voltage: 50Hz : 1x220V / 3x220/380V / 3x380V |
|
Operating condition
|
A liquid that is thin, clean, non-flammable, and does not contain solid particles, fibers, or physical and chemical properties similar to water.
Liquid temperature: Normal temperature type -15℃ to 70℃ Hot water type -15℃ to 120℃ Ambient temperature: Maximum +40℃ Altitude: Maximum 1000m |
|
Advantage
|
Energy saving, low noise, environmental protection and compact structure, beautiful appearance, light weight, easy to use and maintenance, high reliability.
|
|
Function
|
It can transport a variety of different media from tap water to industrial liquids, suitable for different temperature, flow and pressure ranges.
|
|
Application
|
Water supply, industrial pressurization, industrial liquid transport, HVAC, water treatment.
|
|
Install
|
Easy installation
|
|
Feature
|
1.AISI304 motor shell, upper cover, strainer, shaft, and nuts
2.ltalian double face mechanical seal, AC over-heat protector insible 3.Integrated plug, good water proof 4.Good appearance, small and light, easy to use and maintain |
|
Application
|
Draining standing-water and waste water for cellar, plant, construction site etc, Water Circulation for garden landscapes.
|
