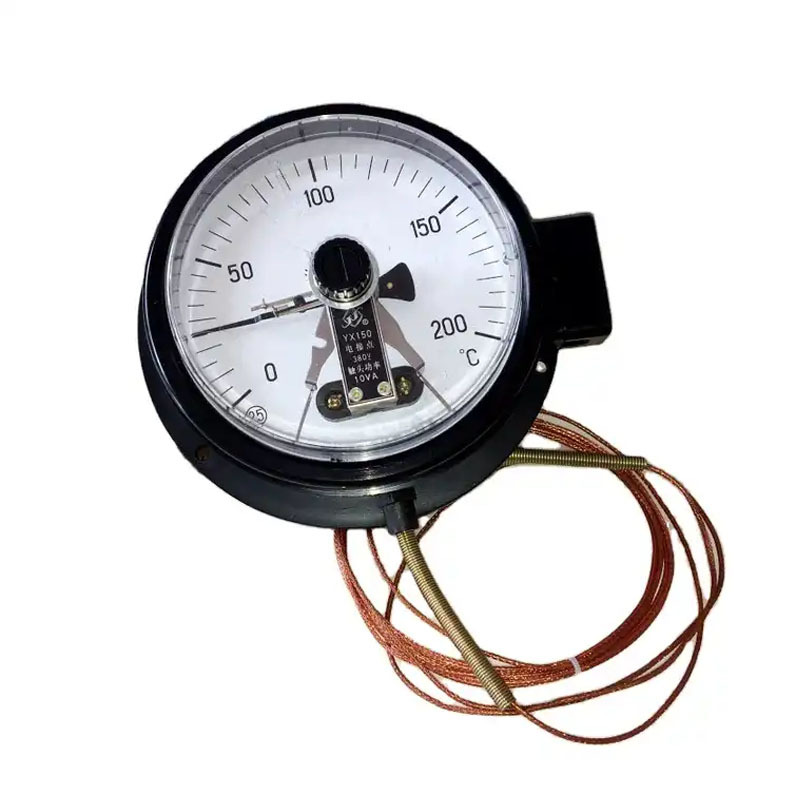

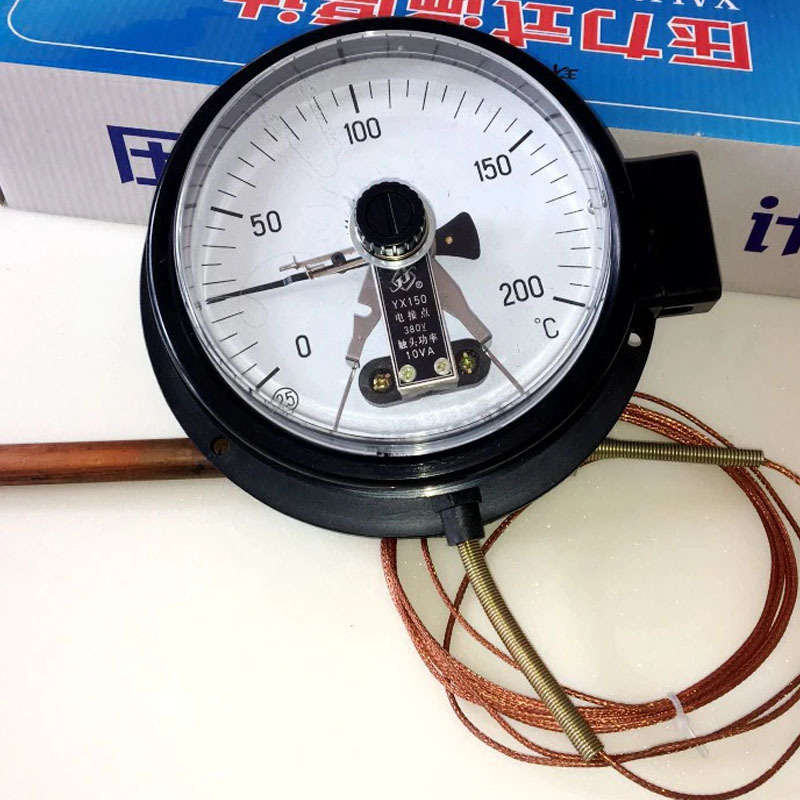

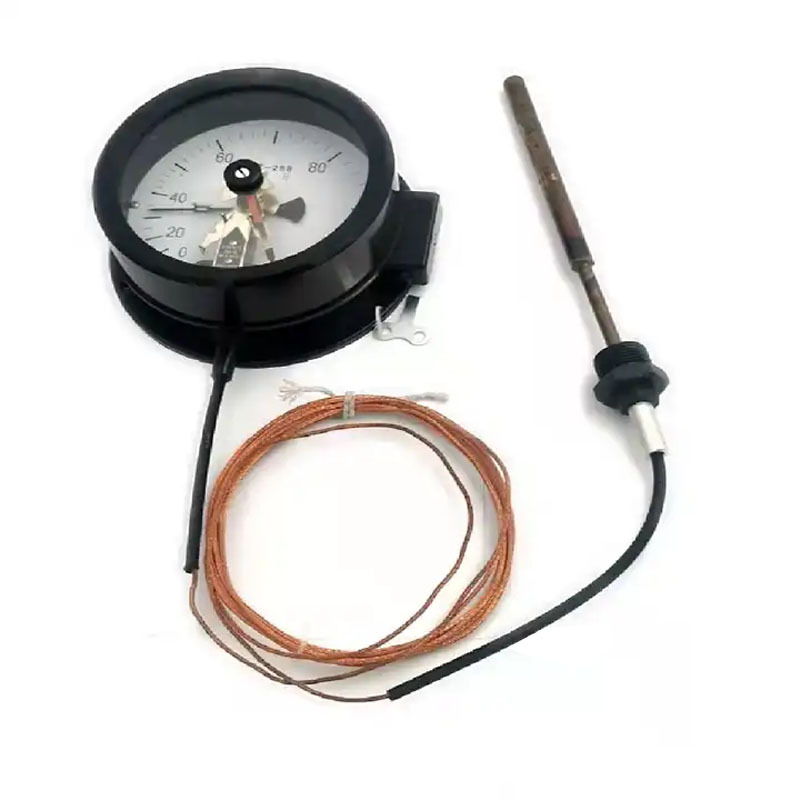

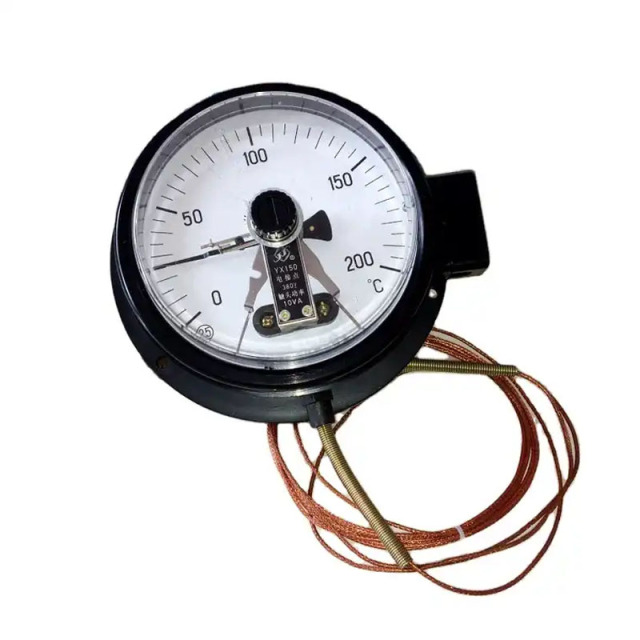

Name: Industrial Bimetal Thermometer and Thermocouple
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
SKU: WTZ/Q-280、WTZ/Q-288
Availability: InStock
Rating: 5 (1 reviews)

Description

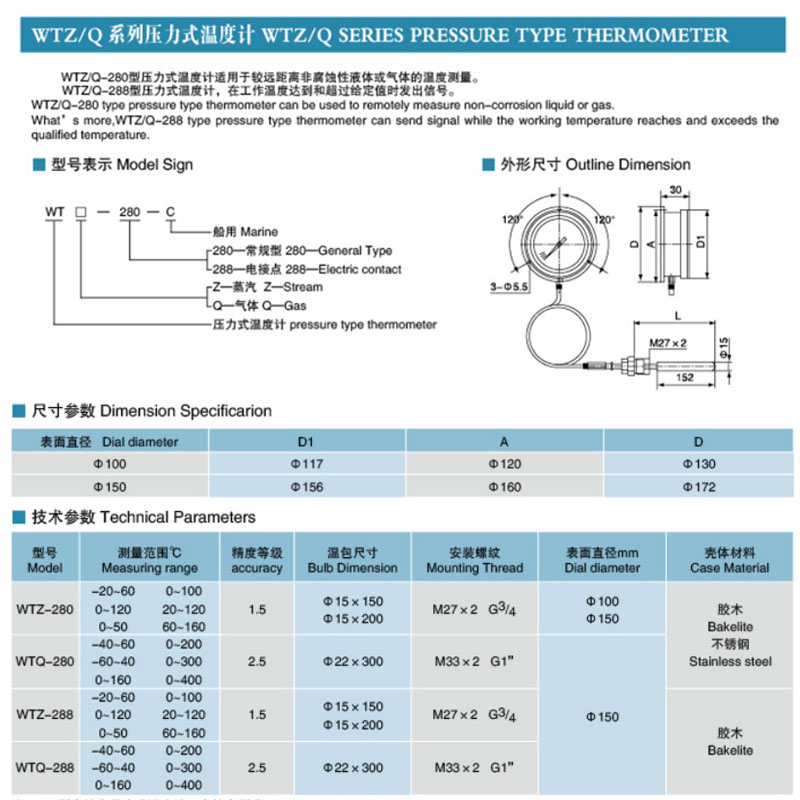

Specification

Product Name	Pressure Gauge Thermometer
Case Material	Bakelite and Stainless Steel
Model	WTZ/Q-280; WTZ/Q-288
WTZ-280 Accuracy	1.5
Mounting Thread	M27x2 G3/4
WTQ280 Accuracy	2.5
Mounting Thread	M33x2 G1"
Temperature Range	0-400°C(Customizable)
Place of Origin	China
Advantage	Accurate measurement, sensitive response, clear scale
Applications	Suitable for Marine, steel, petrochemical industry

Working Principle

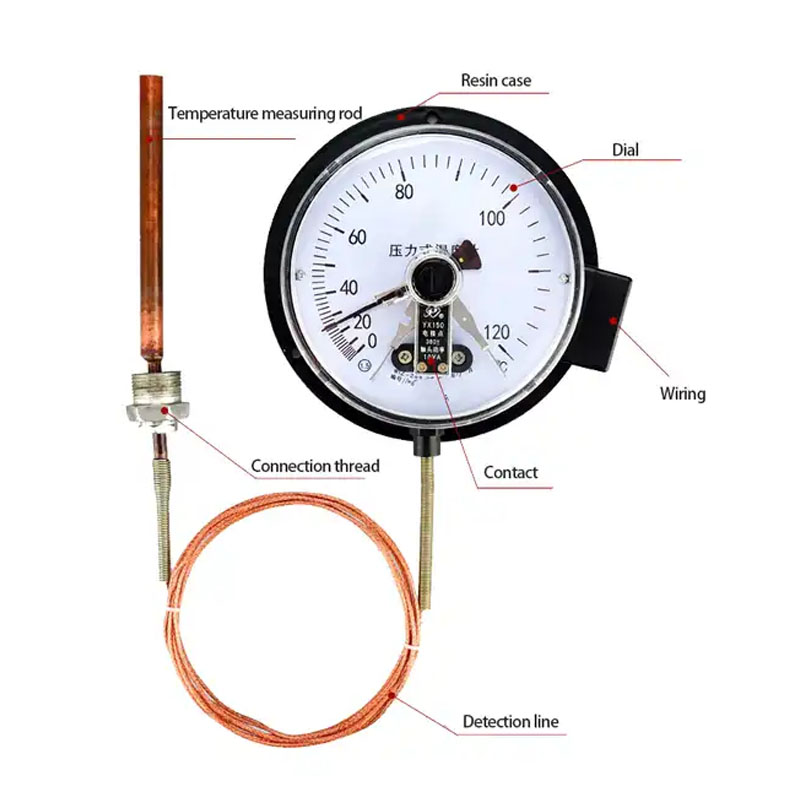

The working principle of a Marine pressure thermometer is based on the relationship between the saturated vapor pressure and the temperature of the evaporated liquid in a closed temperature measuring system. When the liquid or gas in the temperature packet is heated, its volume will expand with the increase of temperature, and then produce pressure changes. This pressure change is driven by a transmission mechanism such as a spring tube to move the pointer on the dial, thereby indicating the change in temperature.

Characteristic
1、High safety protection performance:
Marine pressure thermometer can set a safe temperature line, when the actual temperature exceeds the set temperature, the thermometer will automatically cut off the wire, protect the equipment and send a safety signal.
2、Wide temperature range:
Although the temperature range may be more limited than that of bimetal thermometers (usually between -80°C and 400°C), it is sufficient to meet the needs of most ships.
3、Remote monitoring function:
Some Marine pressure thermometers have a remote transmission function, which can transmit the temperature to the dial through the capillary line for remote monitoring.
4、Good seismic performance:
the Marine environment is complex and changeable, and the Marine pressure thermometer usually has good seismic performance to adapt to the sailing conditions of the ship.

Application
Marine pressure thermometers are widely used in various mechanical equipment of ships, such as diesel engines, boilers, cooling systems, etc., for measuring the temperature of liquids, gases and steam. In addition, it is also used in the fields of cold storage equipment and air conditioning systems of ships.

Attention
1、Insertion depth:
With a pressure thermometer, the temperature packet must be fully immersed in the measured medium to ensure accurate measurement.
2、Ambient temperature effect:
Changes in the ambient temperature of the spring and capillary will affect the thermometer value, so the ambient temperature should be kept stable as far as possible.
3、Protect the capillary tube:
Pay attention to protect the capillary tube during installation and use to avoid severe bending, impact or damage to the seal.
4、Limitation of measuring range:
When using pressure type temperature timing, it should be noted that the measured temperature cannot exceed the upper limit temperature of the thermometer, so as not to damage the thermometer.
