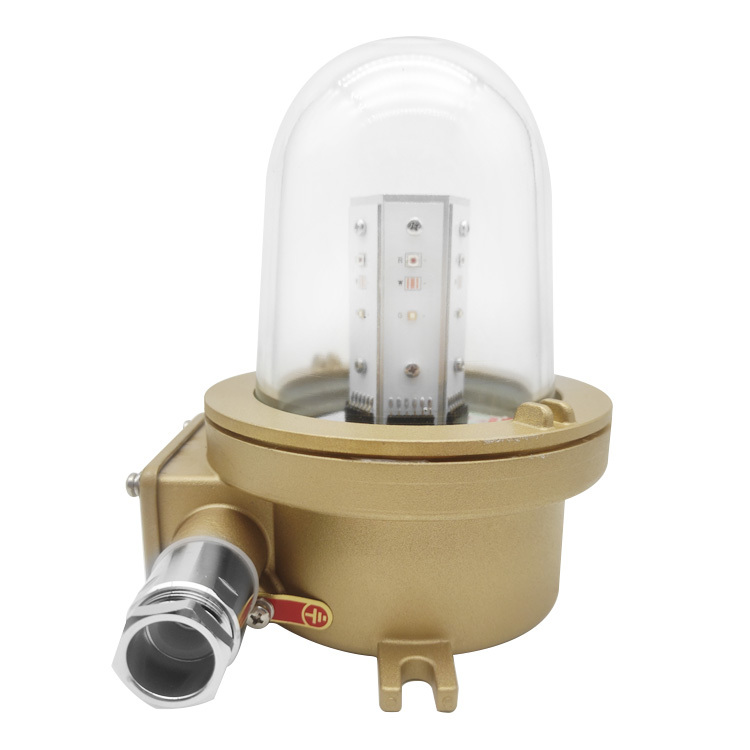

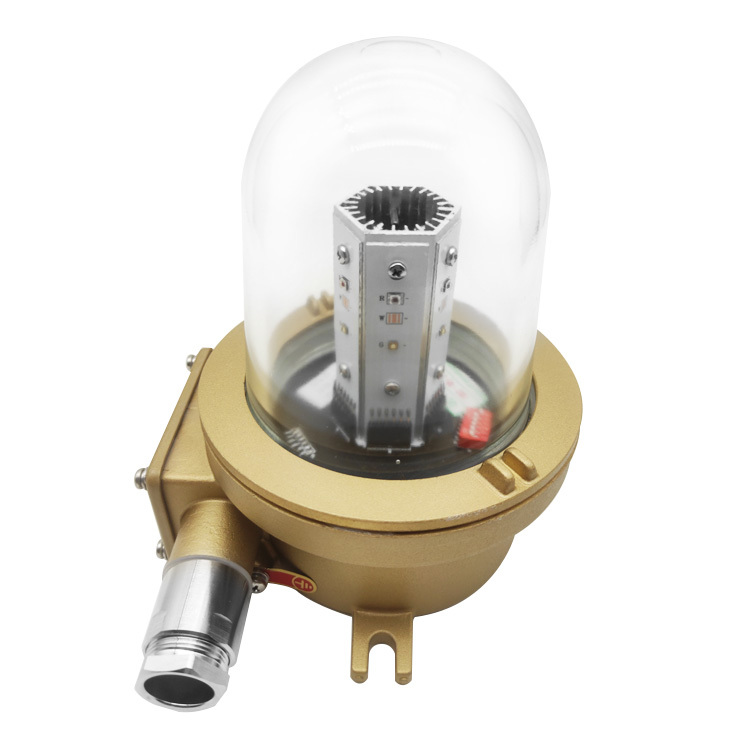

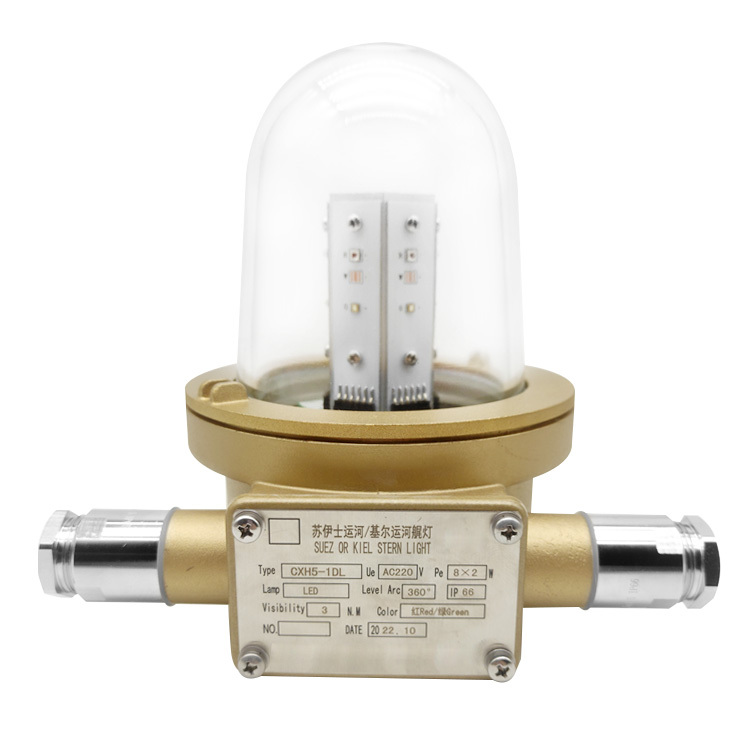

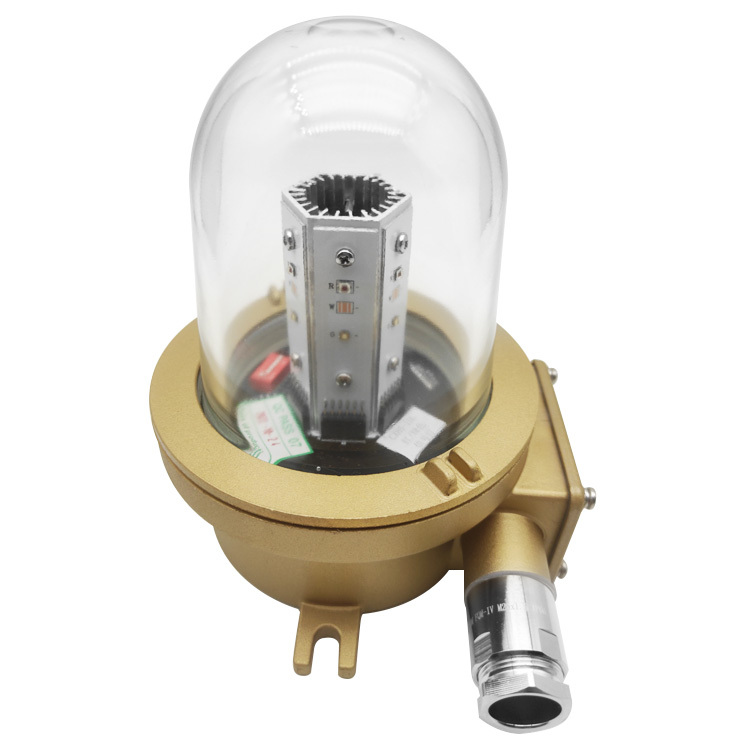

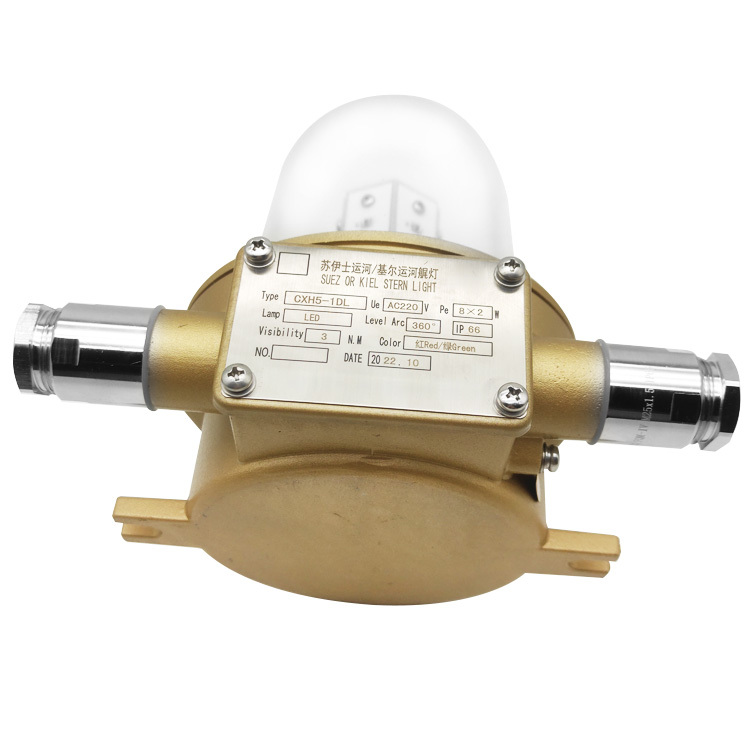

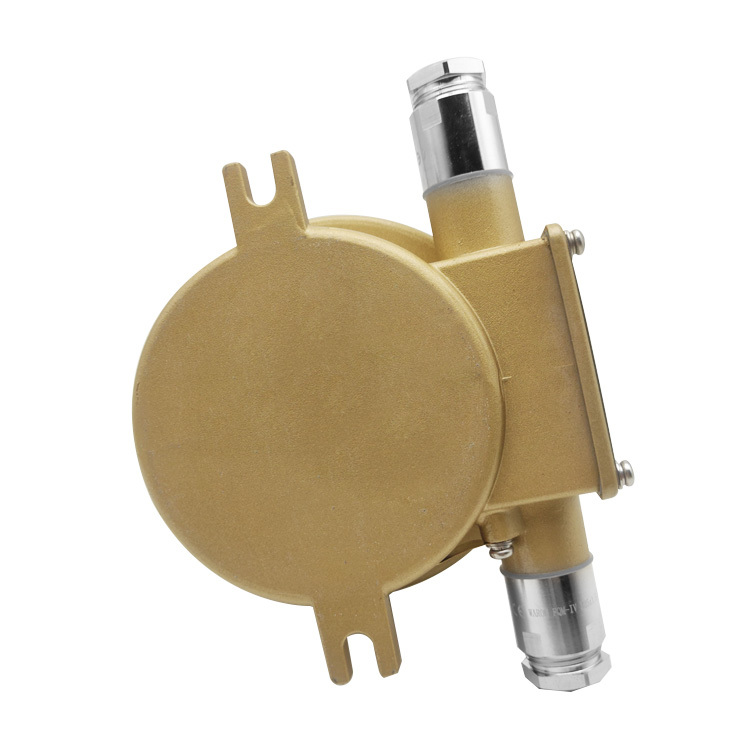

Marine Stern Light or Navigation Light and Marine LED Light

No.CXH5-1XL、CXH5-1DL、CXH5-1TL

Stern lights, also known as taillights, are important equipment for light signal communication on ships during night sailing. When sailing at night, the ship needs to turn on the stern light to indicate its direction and position for collision avoidance and communication with other ships.

Description

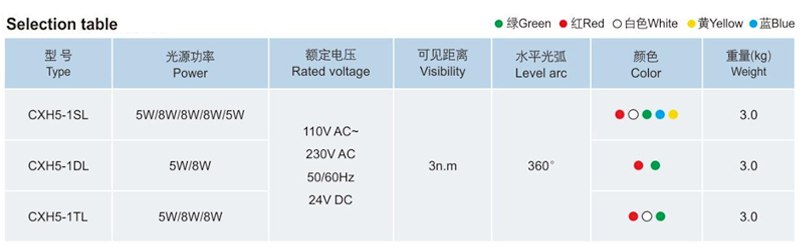

Specification

Product Name	Marine Navigation light
Conformity to Standards	In accordance with the 1972International Regulationsfor Preventing Collisions at Sea and the Classification Code for Steel Vessels, IEC60598, GB/T 3028,CCS classification code Conform to the International Regulationsfor Preventing Collisions at Sea, 1972,Rules for Classification of Sea-going SteelShips, IEC60598 and GB/T 3028, CCS standard
Ambient Temperature	-40℃~+55°℃
Light Source	LED module
Degree of Protection	IP66
Cable Entry	2xM25×1.5, applicable to Φ10-Φ18mm cable
Material	Brass lamp body, tempered glass transparent cover
Application	It is suitable for ships with a length of 250 meters as a light signal for day and night navigation.

Definition
Stern lights are white lights placed as close as possible to the stern of a ship, showing uninterrupted light in a 135 degree horizontal arc. Its main function is to provide light signals for ships sailing at night for visual communication with other ships and collision avoidance. According to the international collision avoidance regulations, the installation position and lighting Angle of the ship's stern light are strictly regulated to ensure that it can effectively play its role.

Installation Requirements
Position:
The ship's stern lights should be installed as close to the stern as possible to ensure that their lights accurately represent the direction and position of the ship.
Angle:
The light of the ship's stern light shall display an uninterrupted light in a horizontal arc of 135 degrees, and shall be installed so that the light is displayed from the direct rear of the ship to 67.5 degrees on each side. This ensures that other ships can observe the light of the ship's stern light from multiple angles, so as to determine the sailing status and position of the ship.
Luminous intensity:
The luminous intensity of the ship's stern lamp is also strictly regulated to ensure that its light can be clearly observed at a certain distance. According to the length of the ship, the illumination distance of the ship's stern light is also different. In general, for ships with a length of 50 meters or more, the stern light distance should be 3 nautical miles; For ships of 12 meters or more but less than 50 meters in length, the astern light shall be 2 nautical miles away.

Application
Ship stern light is mainly used in the ship sailing at night, as one of the important means of light signal communication. When sailing at night, the ship needs to turn on the stern light to indicate its direction and position for collision avoidance and communication with other ships. In addition, in special circumstances, such as the ship out of control, anchoring, grounding, etc., it is also necessary to open the corresponding light signal according to the regulations to indicate the status of the ship.

Maintenance and Inspection
1、Clean the lampshade:
Clean the lampshade regularly to prevent dust and dirt from affecting its luminous effect.
2、Check the bulb:
Check that the bulb is intact and working properly. If the lamp is found damaged or insufficient brightness should be replaced in time.
3、Check the circuit:
Check whether the circuit connection is solid and reliable and meets the safety requirements. If the circuit fault is found, it should be repaired in time.
4、Check the installation position:
check whether the installation position of the ship stern light meets the requirements. If the position deviation or Angle is found to be inaccurate, it should be adjusted in time.
