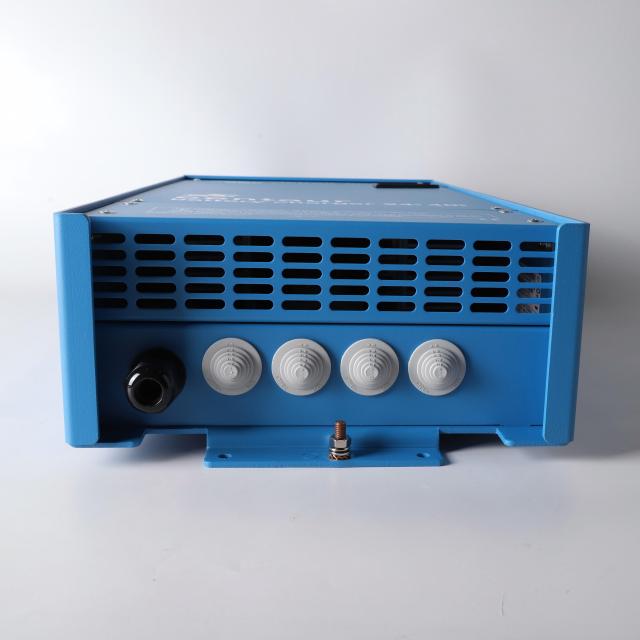

Name: Marine Full High-frency Switched Centaur Battery Charger
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
SKU: RAL5012
Availability: InStock
Rating: 5 (1 reviews)

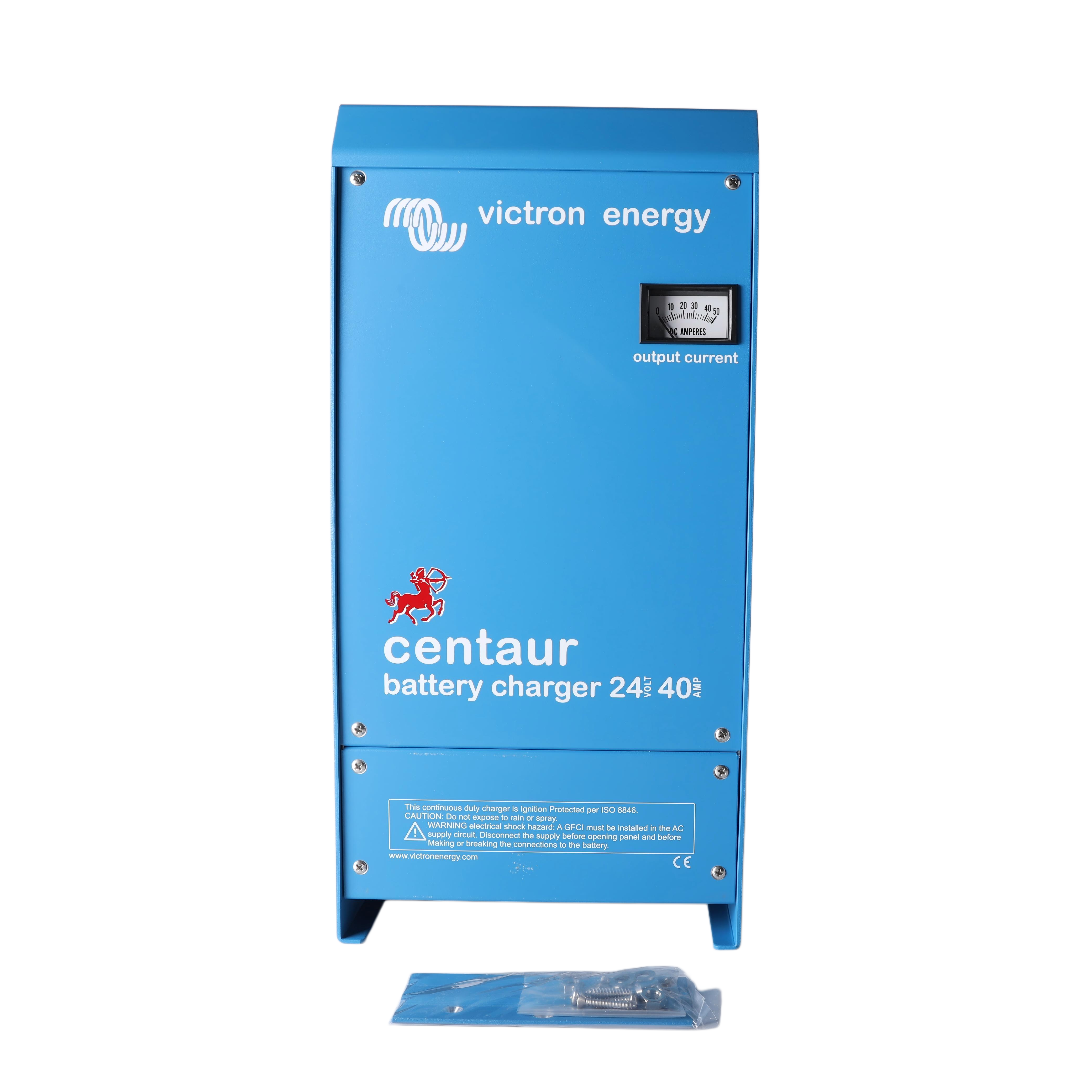

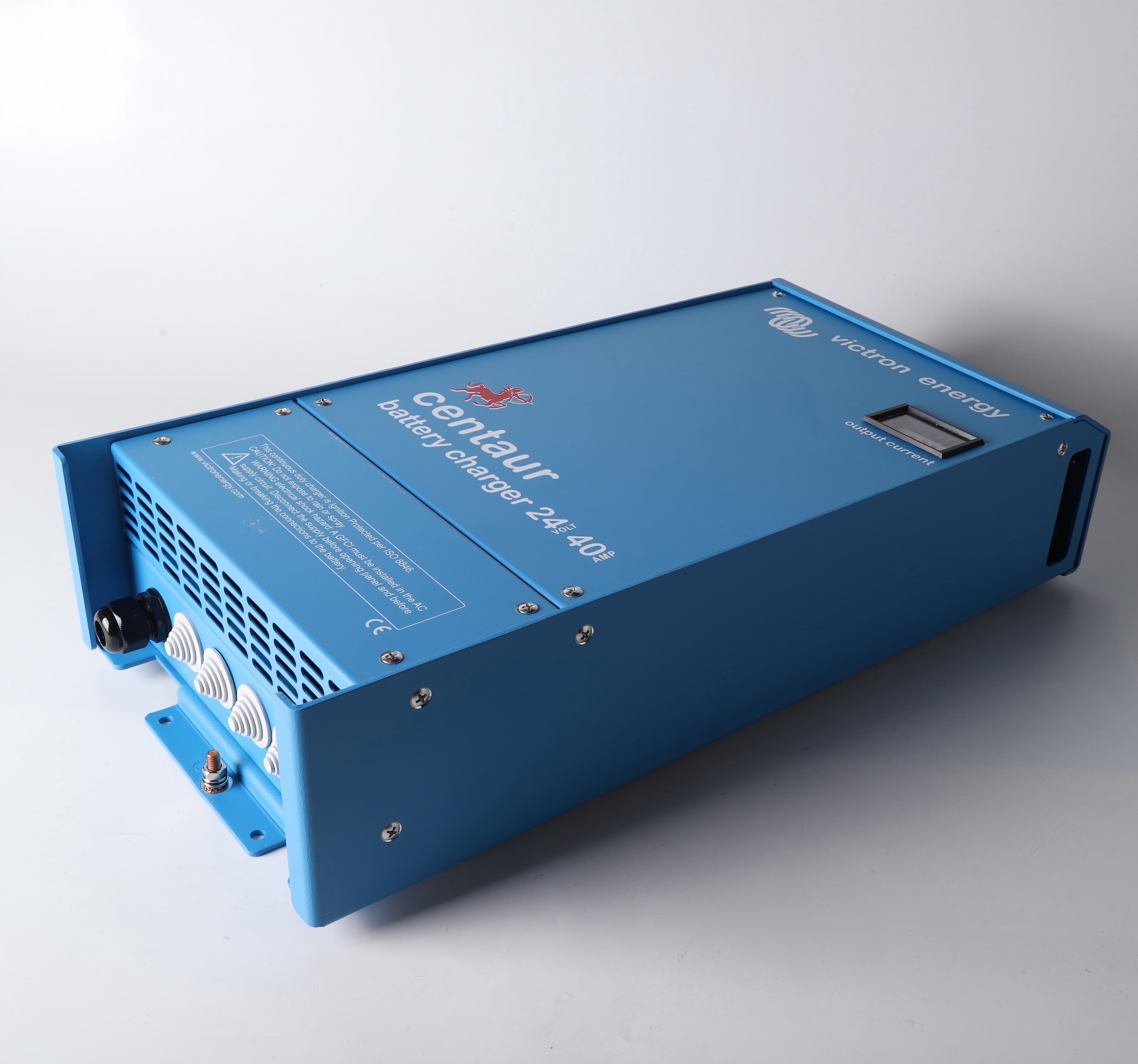

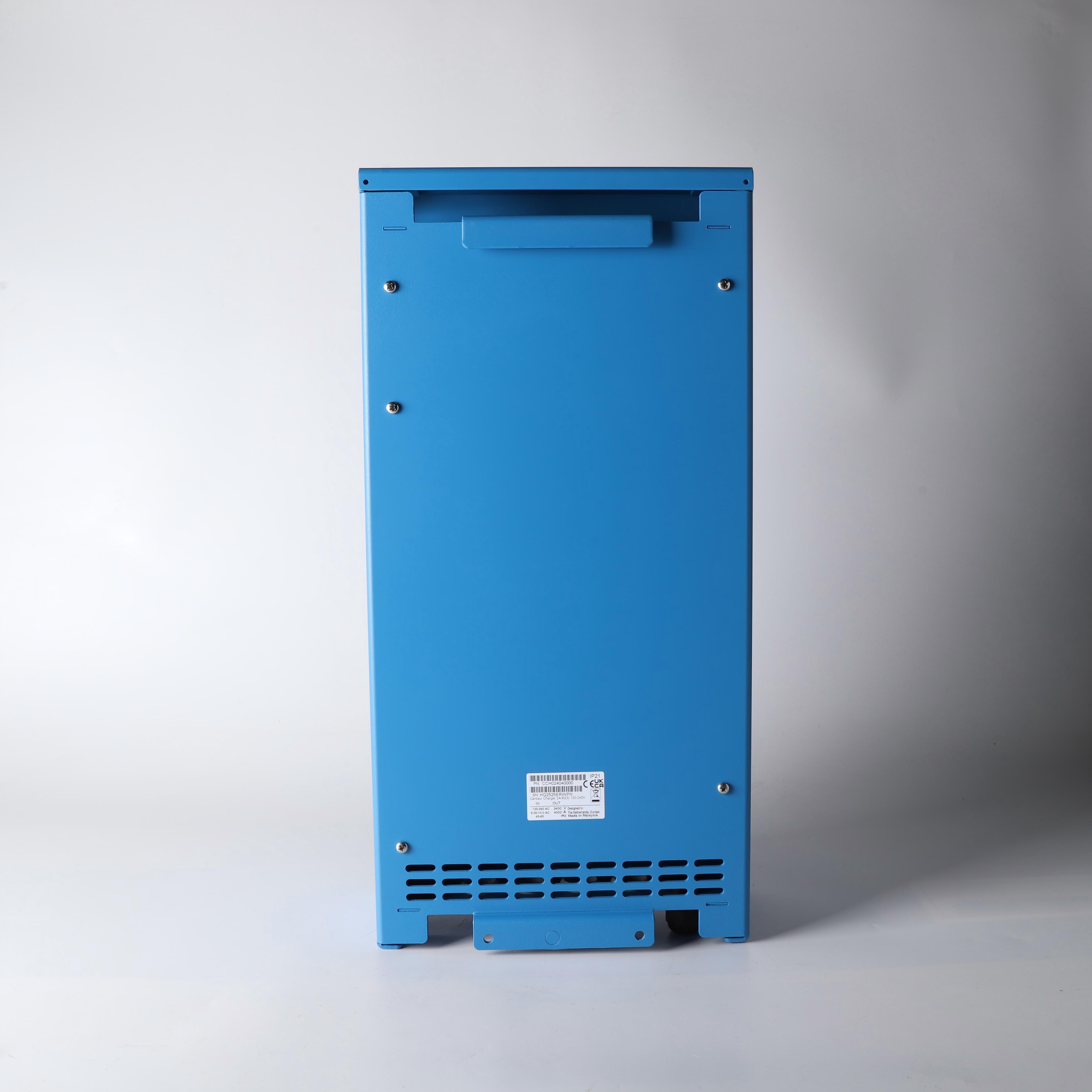

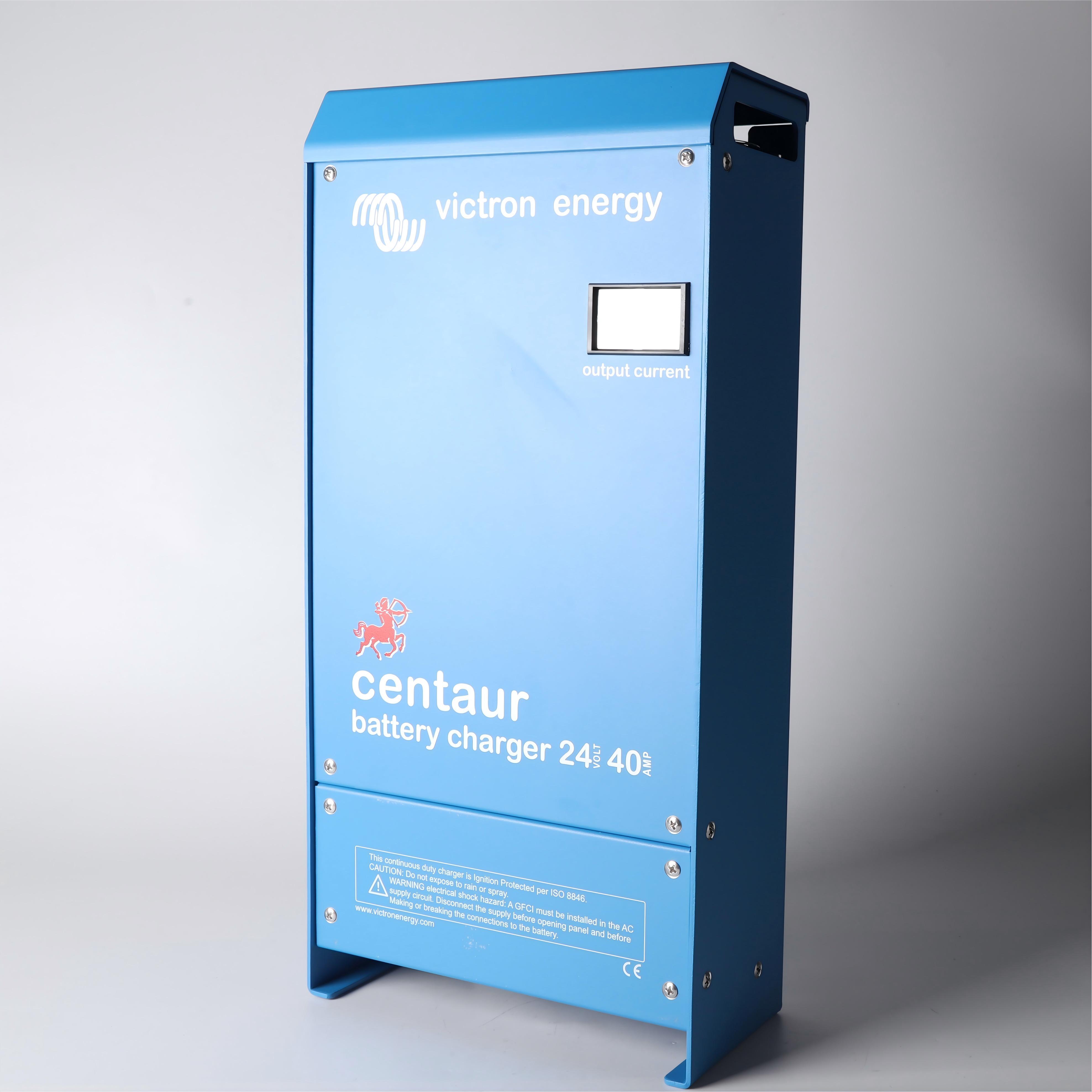

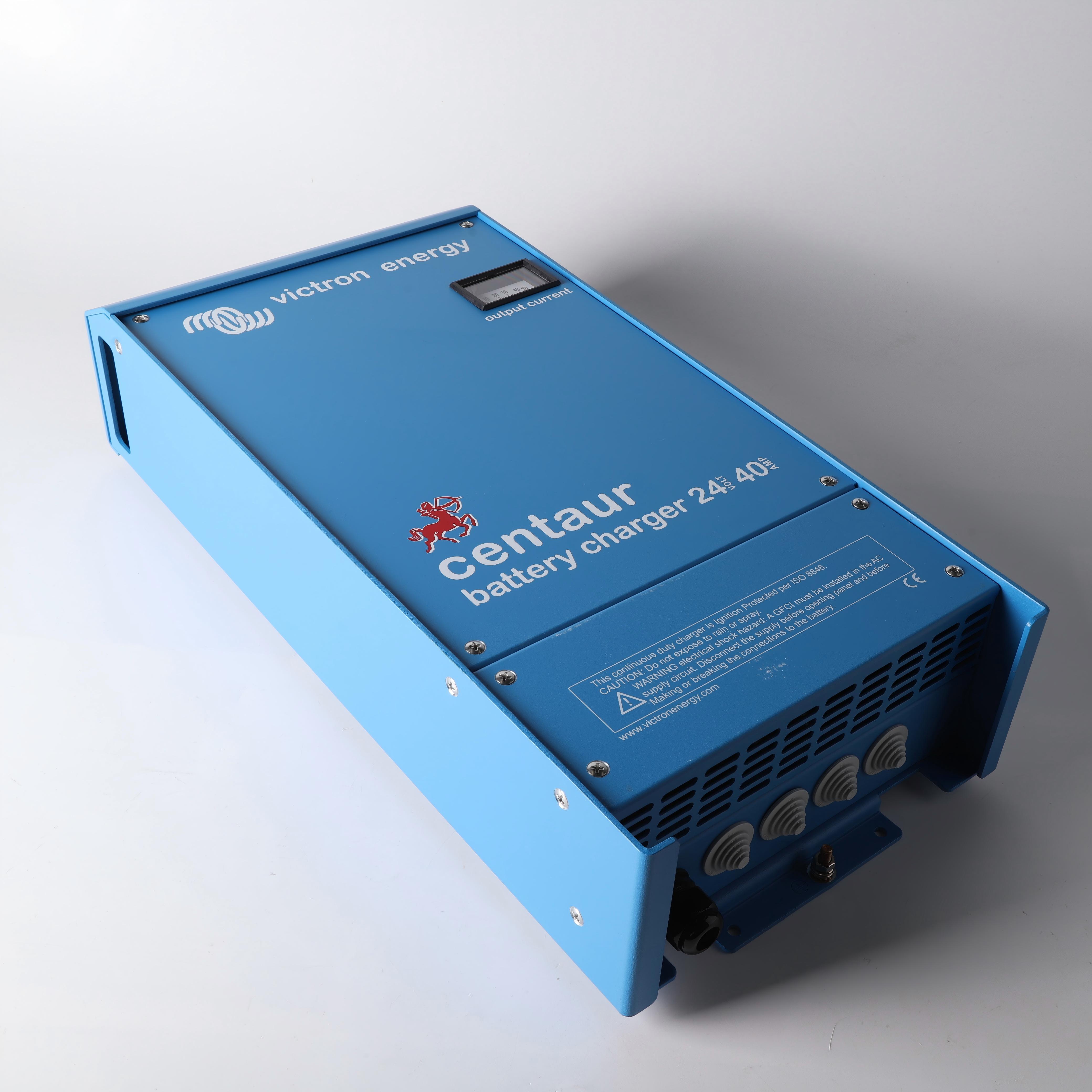

Marine Full High-frency Switched Centaur Battery Charger

No.RAL5012

Marine battery chargers are charging devices specifically designed for ship batteries. They have special protective features such as moisture-proof, salt spray-proof and corrosion-proof to adapt to marine environments. Depending on the type of ship and battery specifications, marine chargers vary significantly in terms of voltage, current and power.

Description

Specification

Centaur Charger	12/20	12/30 24/16	24/16	12/60 24/30	12/80 24/40	12/100 24/60	12/160 24/80	12/200 24/100
Common characteristics	Input voltage: 90 - 265 V Input frequency: 45 -65 Hz Power factor: 1
Charge voltage 'absorption' (VDC)	14,3 /28,5 (1)
Charge voltage 'float' [(VDC)	13,5 / 27,0 (1)
Output banks	3
Charge current(A)(2)	20	30/16	40	60/30	80/40	100/60	160/80	200/100
Total output ammeter	Yes
Charge characteristic	IUoU(Three stage charging)
Recommended battery capacity(Ah)	80-200	120-300 45-150	160-400	240-600 120-300	320-800 160-400	400-1000 240-600	640-1600 320-800	800-2000 400-1000
Temperature sensor	Intemal, - 2mV / °C (- 1mV / F) per cell

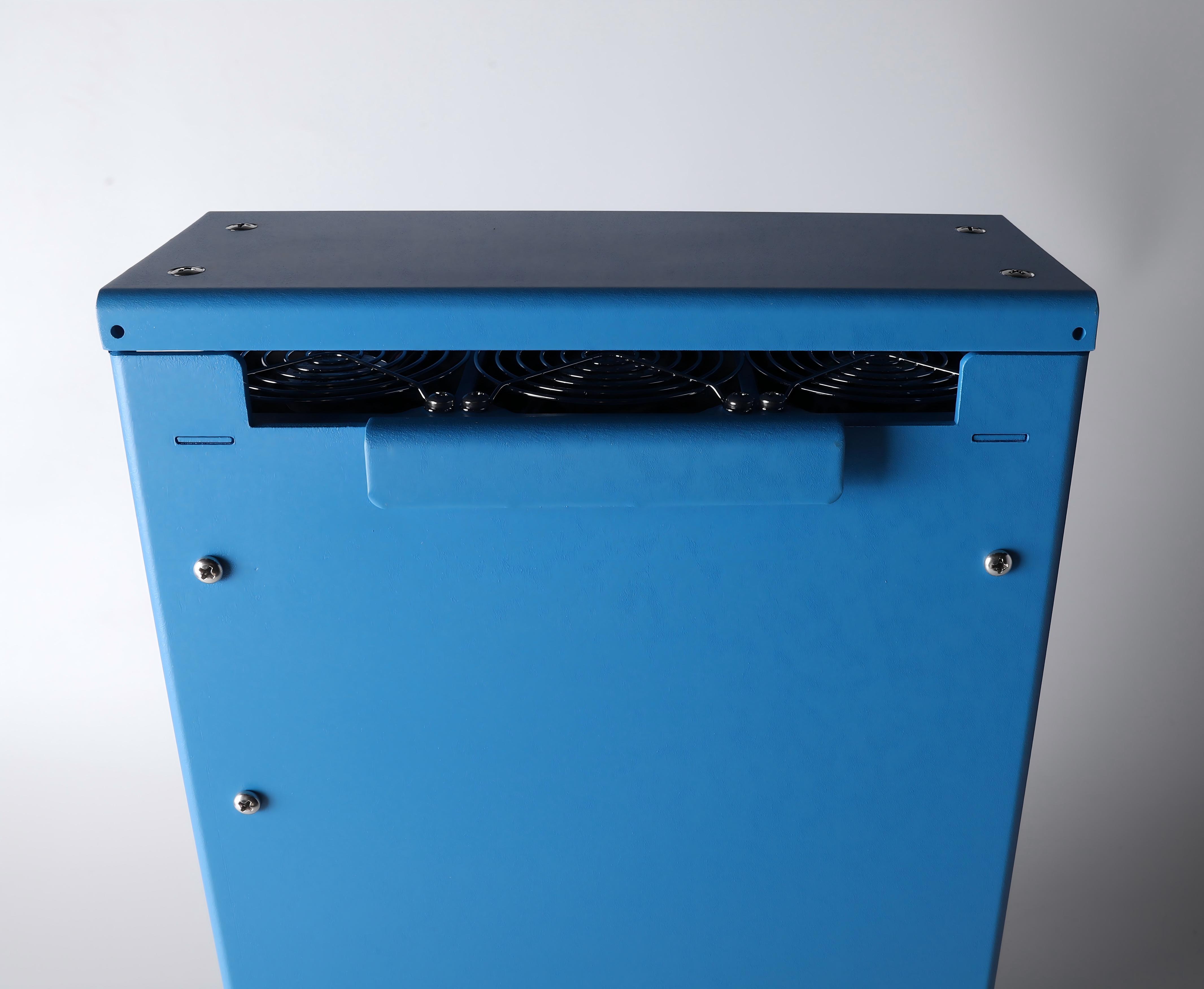

Forced cooling	Yes,temperature and current controlled fan
Protection	Output short circuit，over temperature
Operating temp.range	-20 to 60°℃ (0-140°F)
Lgnition protected	Yes
Humidity (non condensing)	max95%
ENCLOSURE
Material &Colour	aluminium (blue RAL 5012)

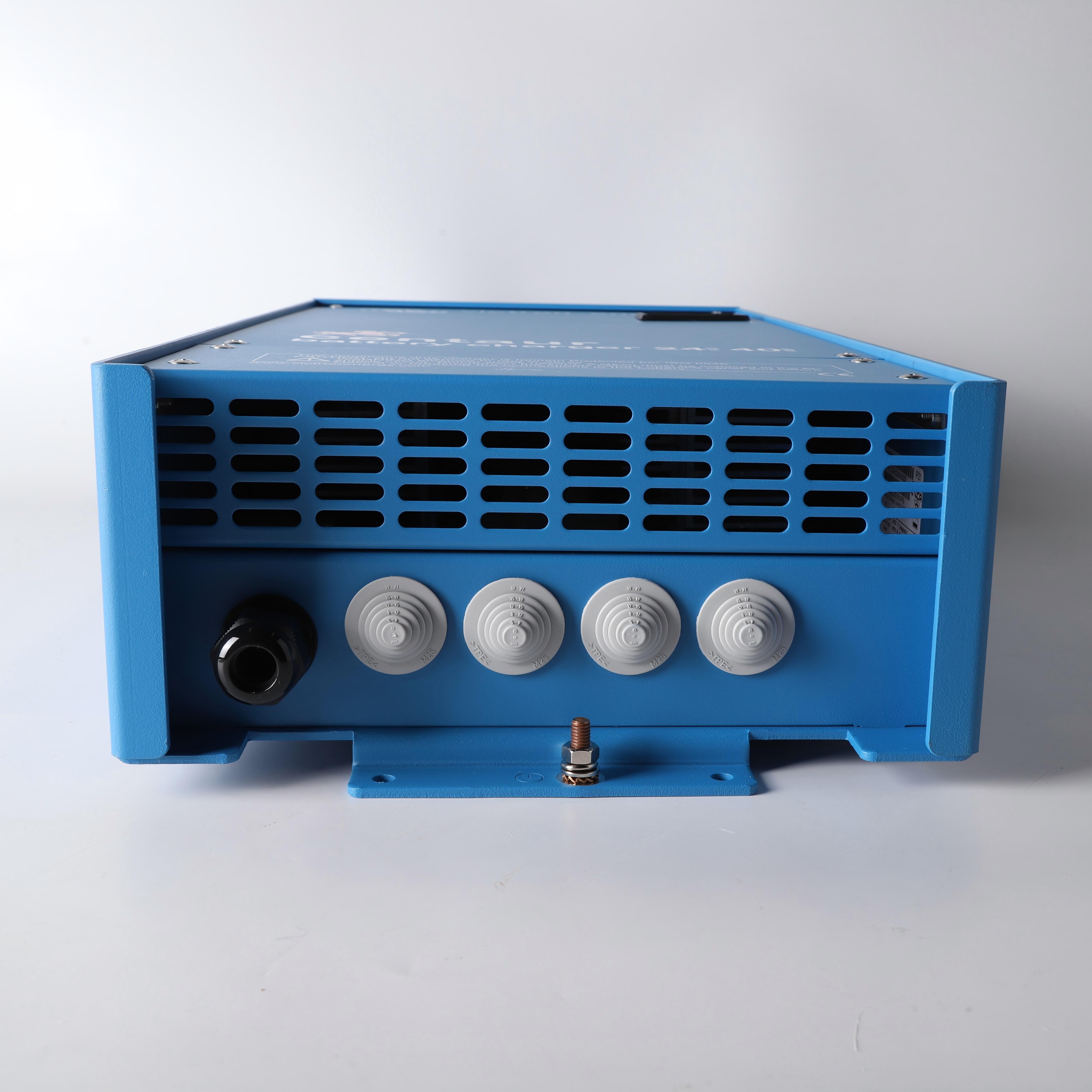

Battery-connection	M6 studs	M6 studs	M8 studs	M8 studs	M8 studs	M8 studs	M8 studs	M8 studs
AC-connection	screw-clamp 4 mm² (AWG 6)

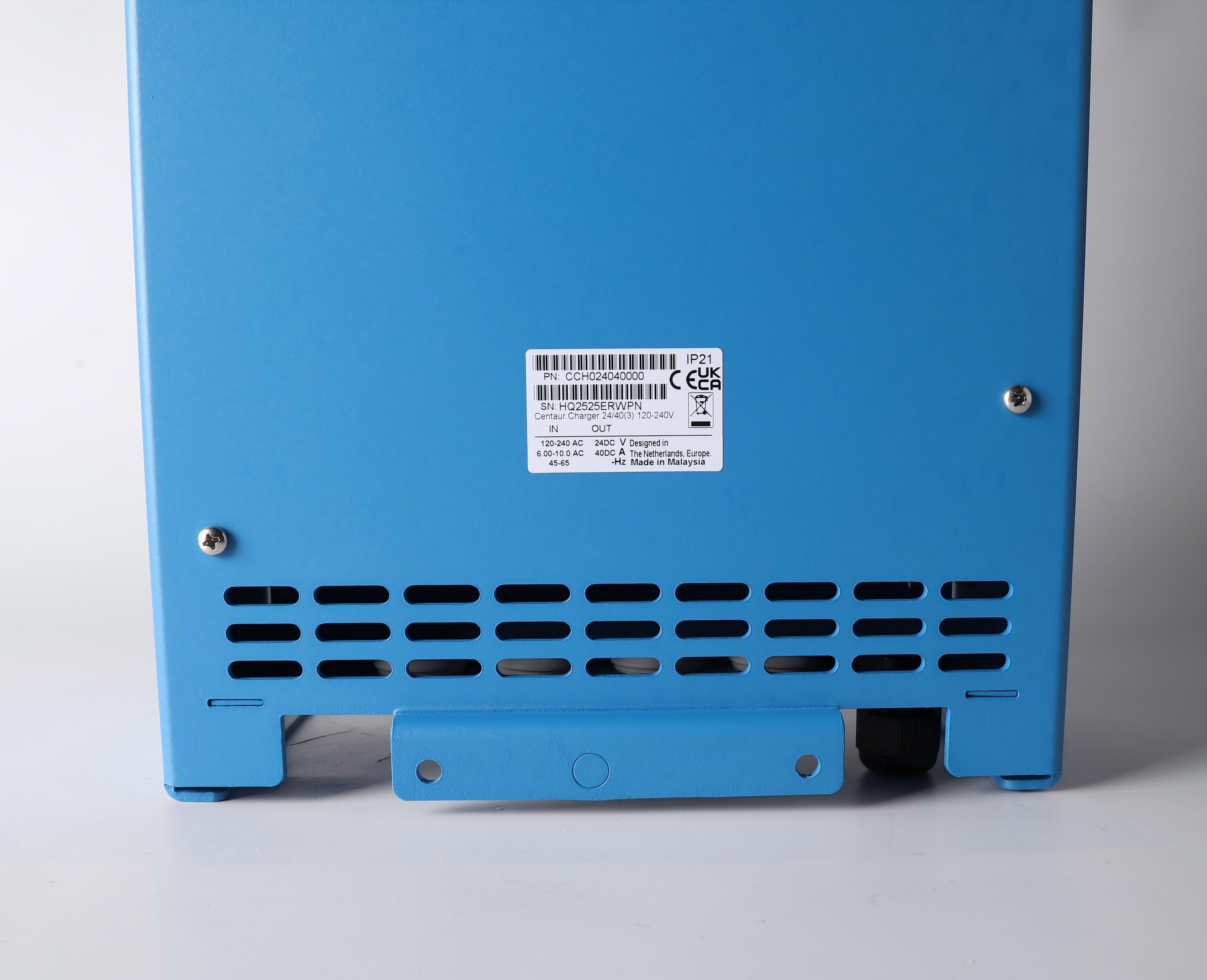

Protection category	IP21
Weight kg (Ibs)	3.8 (8.4)	3.8 (8.4)	5 (11)	5 (11)	12 (26)	12 (26)	16 (35)	16 (35)
Dimensions hxwxd in mm (hxwxd in inches)	355x215X110 (14.0x8.5X4.3)	355x215X110 (14.0x8.5X4.3)	426x239X135 (16.8x9.4x5.3)	426x239X135 (16.8x9.4x5.3)	505x255X130 (19.9x10.0x5.2)	505x255X130 (19.9x10.0x5.2)	505x255X230 (19.9x10.0x9.1)	505x255X230 (19.9x10.0x9.1)
STANDARDS
Safety	EN 60335-2-29,UL 1236
Emission	EN55014,EN61000-3-2,EN61000-3-3
Immunity	EN 55014-2

1)Standard setting.
Optimum charge/float voltages for Flooded Lead-acid, Gel-Cell orAGMbateries selectable by dip switch.
2) Up to 40 °C (100 °F) ambient.
Outputwillreduce to approximately 80%of nominal at 50°℃(120°F)and 60%of nominal at 60°℃(140°F).

Description
Technology
The Centaur Charger is a fully high-frequency switched battery charger. The input is electronically power factor corrected by the first power stage.
The next stage gives provision for galvanic isolation and a perfect DC voltage at the output terminals.
The internal electronic parts are protected against moisture and dirt by means of a special coating, which assures a long lifetime of your battery charger.
Three high-capacity batteries can be charged simultaneously with this charger.
Operation
The battery charger charges the battery with 3-stage (Bulk-Absorption-Float) charging characteristic. It can remain connected to the battery continuously, without increased gas formation,caused by overcharging, taking place.
The charger can be used for different types of batteries but the default settings are for Gel batteries.
For use with other types of batteries please select Lead acid or AGM by opening front bottom cover and select dipswitch in bottom left hand corner.
The full charging current of this Charger is divided in three main outputs but any one output can supply 100% of power if that is the only battery connected.

Characteristic
Environmental adaptability: Marine chargers usually have an IP55 or higher protection level. The casing is made of stainless steel or treated with a special coating, which can resist seawater corrosion, moisture, and vibration, and the operating temperature range is from -20℃ to +60℃.
Charging mode: It adopts intelligent three-stage charging (constant current - constant voltage - floating charge), automatically identifying the battery status. Once fully charged, it will automatically stop or switch to the floating charge mode to prevent battery damage caused by overcharging. Some high-end models support automatic identification of various battery types such as lithium batteries and lead-acid batteries.
Safety protection: The standard configuration includes multiple protection functions such as overvoltage, overcurrent, short circuit, reverse connection, and overheat. Some products also have a temperature compensation function, which automatically adjusts the charging parameters according to the ambient temperature.
