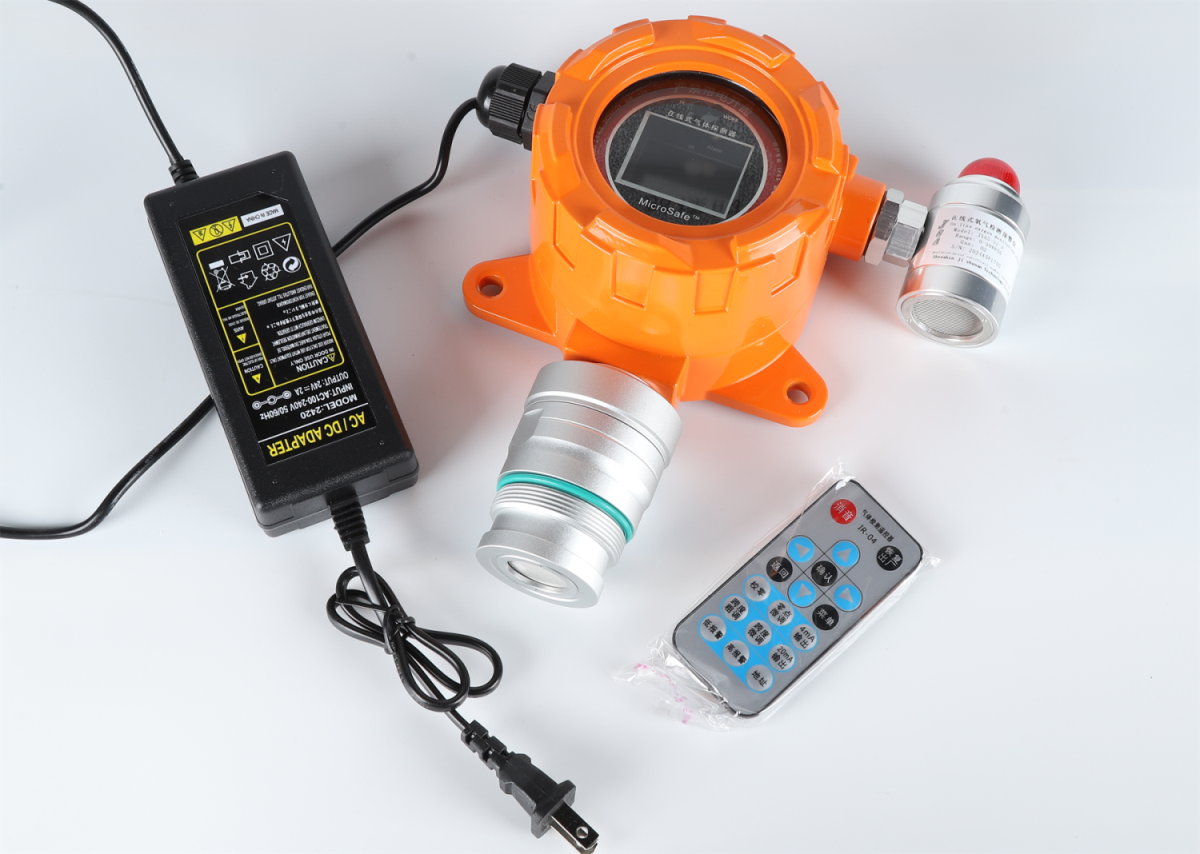

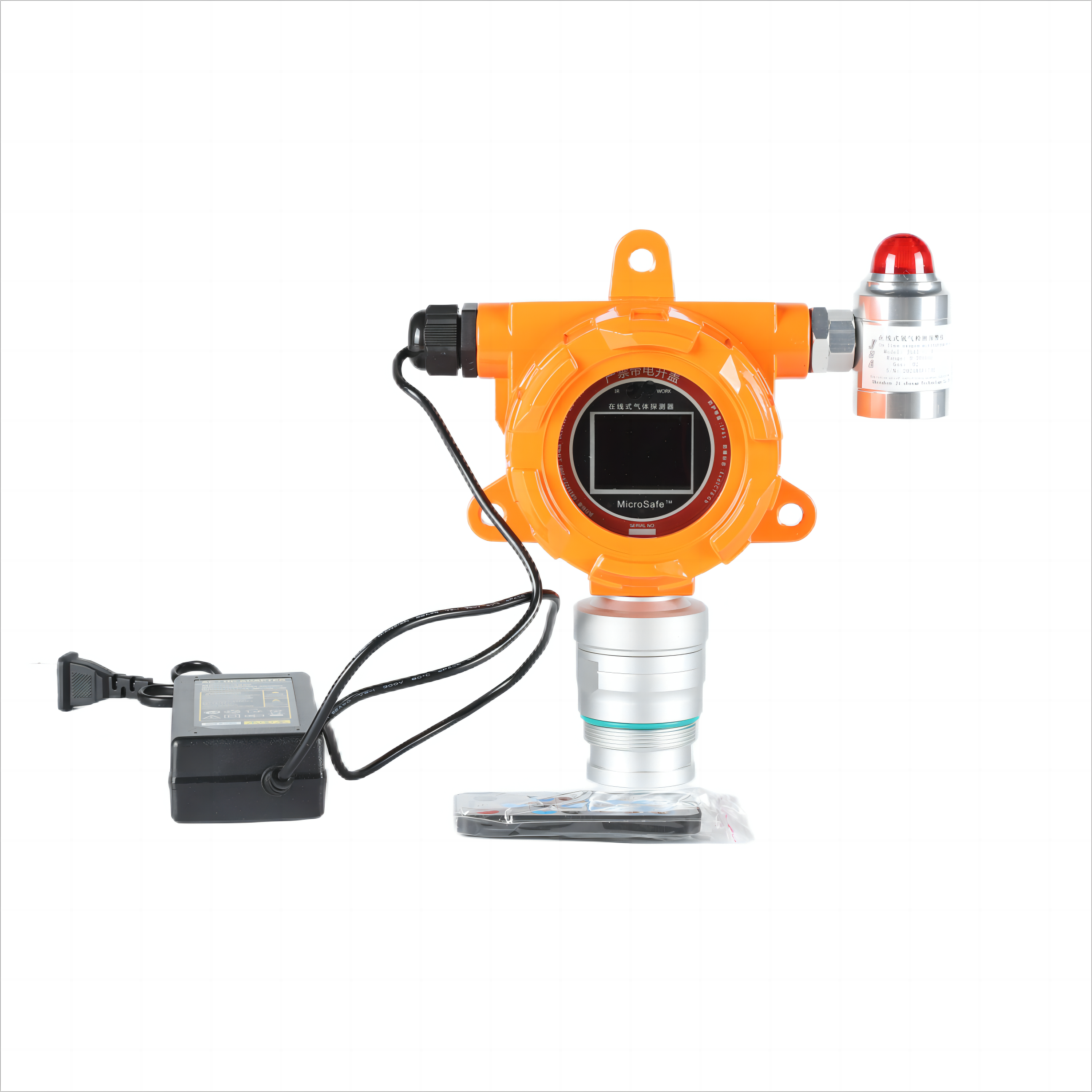

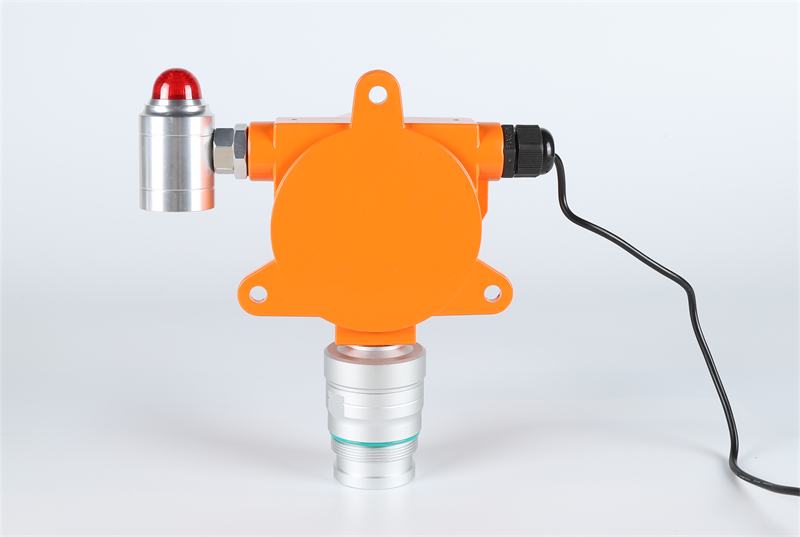

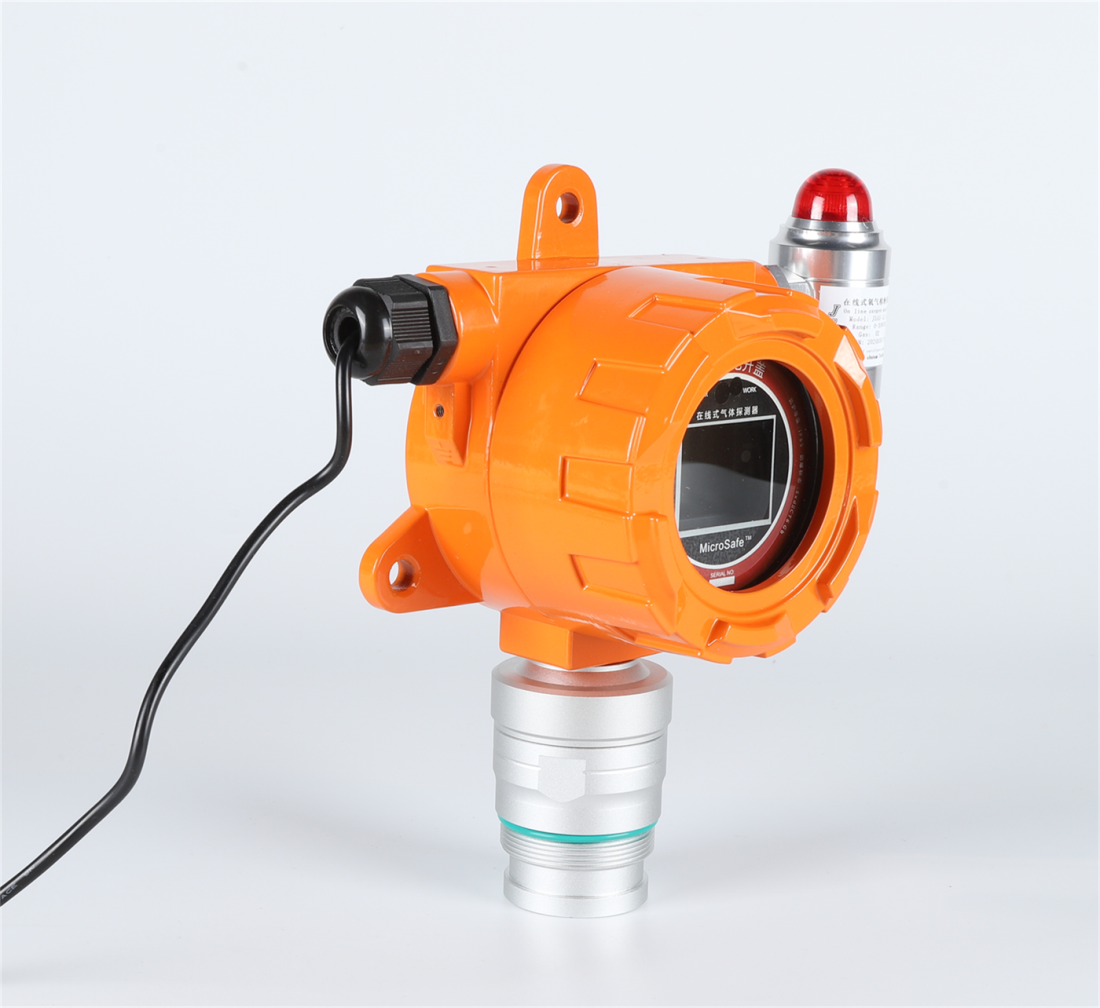

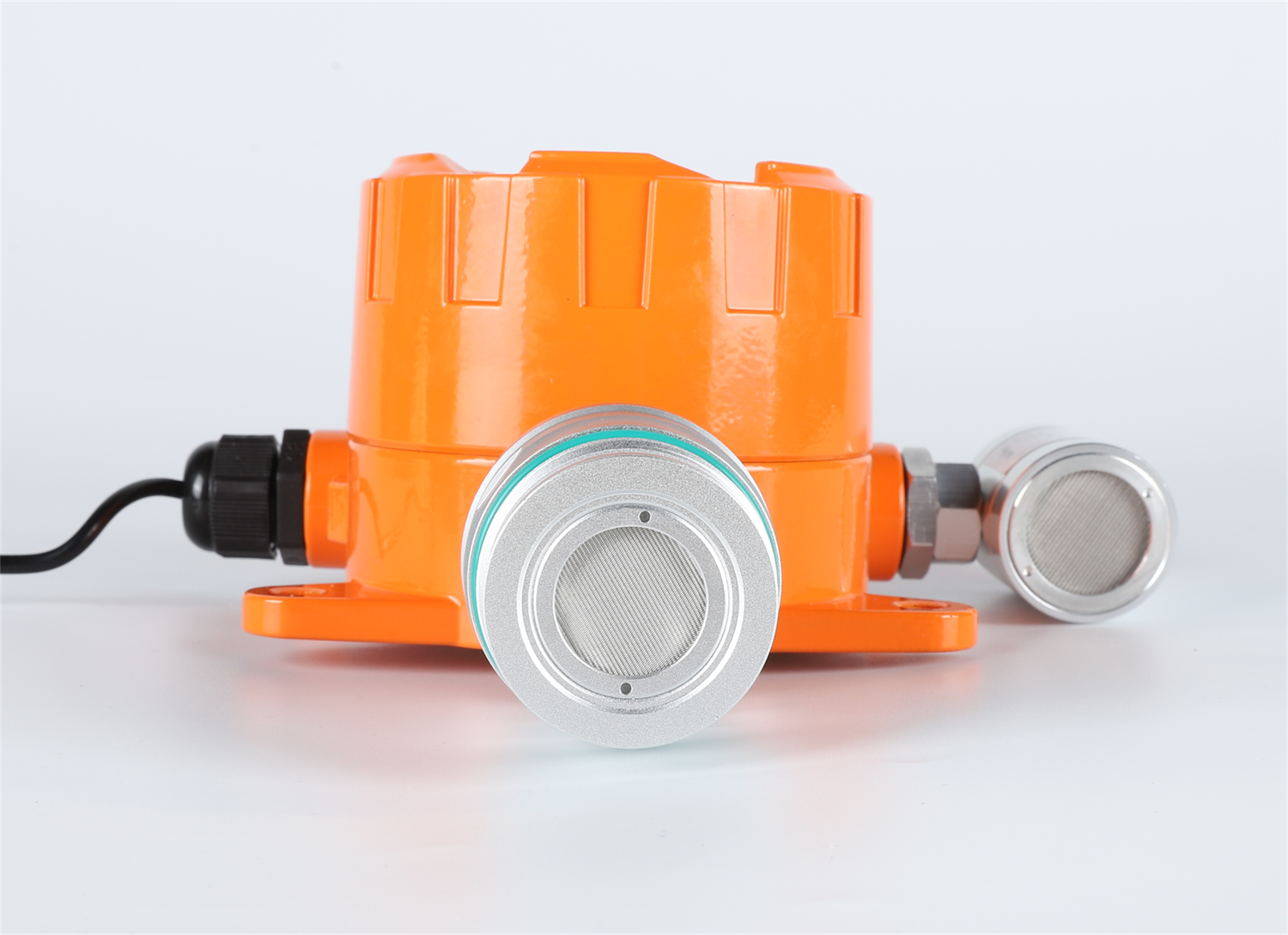

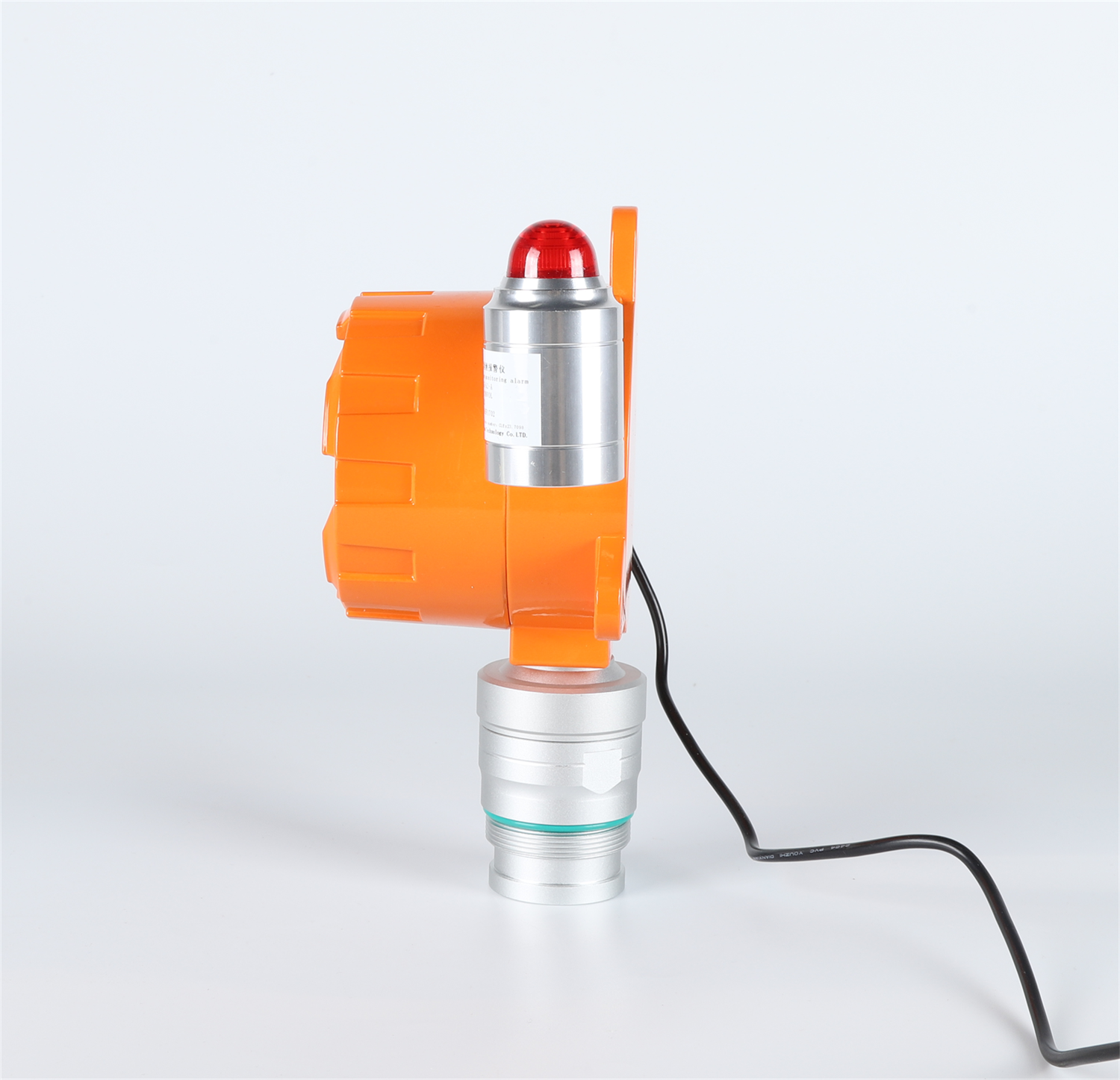

| Product Name | On-line Toxic And Harmful Gas Detector | ||
|
Tracer Gas |
Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc |
||
|
Scope of Detection |
0~1,10,100,1000,5000,50000,100000ppm, 200 mg / l, 100% LEL, 20%, 50%,99.999%, 100%Vol optional, other range can be customized. |
||
|
Detection Accuracy |
≤±3%F.S (More precision precision) |
||
|
Response Time |
T90≤20 sec |
Recovery Time |
≤30 sec |
|
Work Environment |
Temperature: -40℃ ~ + 70℃, Humidity: 10 ~ 95% RH (conventional) |
||
|
Working Voltage |
12~30VDC DC, the standard power supply for a single unit is 24V, 1A or greater than 1A The DC voltage control switch power supply. |
||
|
Working |
Fixed installation, on-line detection, diffusion measurement; optional pipeline type, circulation type, Pump suction measurement. |
||
|
Install |
Pipe-type and wall-hanging type |
||
|
Levels of Protection |
IP65 |
||
|
Type |
Explosive type |
||
|
External Size |
210×170×85mm(L×H×W) |
||
|
Weight |
1.8Kg |
||
Product Characteristics
1. High measurement sensitivity:
Imported electrochemical sensor, high measurement accuracy, good sensitivity, stable and reliable, energy saving;
2. High intelligent digitalization
High-speed MCU microcontroller technology, automatic fault identification and transmission to the controller monitoring; Bus product built-in unique electronic string number, no dip, system stability;
3. Zero correction, automatic curve compensation function
Automatic zero correction, to avoid the measurement error caused by zero drift, automatic curve compensation;
4. High reliability
Flameproof type and advanced patch technology, integrated design, strong reliability.

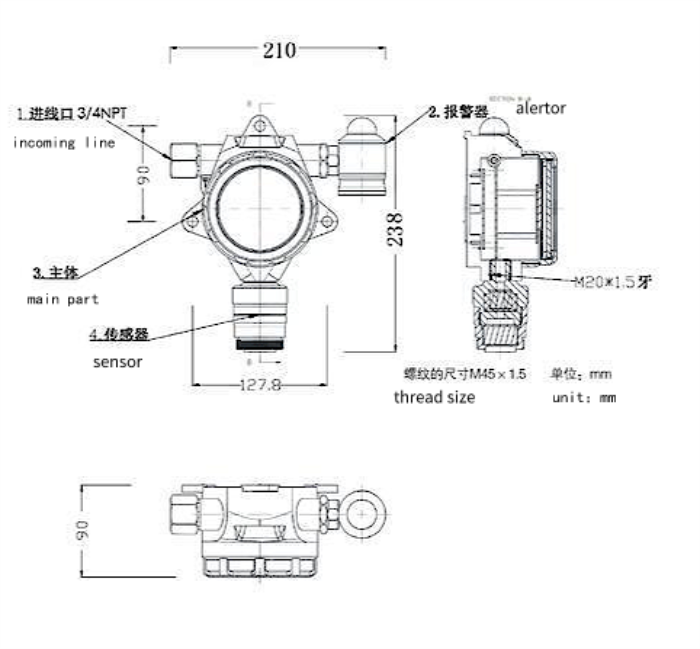

External Size
