Description
Function
Transmitting Power:
The engine crankshaft drives the air conditioning belt through the pulley, and then operates the air conditioning compressor to achieve cooling or heating, providing a comfortable environment for the ship's bridge, crew cabins, galley and other compartments.
With Electromagnetic Clutch:
Many marine engines equipped with air conditioning compressors have electromagnetic clutches on the pulleys of the compressor. The clutches are controlled by direct current to engage or disengage, thereby enabling or disabling the operation of the compressor.
Common Structures
With Central Air Conditioning System:
For small and medium-sized speedboats, yachts, high-speed passenger ships, etc., marine engines with heat pump type central air conditioning are commonly used. The compressor is directly driven by the main engine belt, and the seawater is provided by the main engine cooling water pump. No additional water pump is required.
Sprocket Groove Type:
Commonly seen are A-type and B-type narrow V-belt grooves. Different models of the machine require different groove types and belt specifications, such as SPB type narrow V-belt, etc.
Inspection and Replacement
Visual Inspection:
Regularly check the surface of the belt for any cracks, aging and hardening, frayed edges, oil stains, etc. If obvious wear or insufficient tension is detected, the belt should be replaced immediately.
Tension:
If the belt is too loose, it will slip and make abnormal noises; if it is too tight, it will accelerate wear. Generally, it is advisable to press down about 10-15 mm at the middle of the belt with your finger; the specific value should be referred to the equipment manual.
Replacement Cycle:
Typically, inspections and replacements are conducted based on operating time or mileage (e.g., 60,000–100,000 kilometers or 4–6 years), but the actual wear condition is more critical. If cracks, unusual noises, or slippage occur, replacement should be performed earlier.
Common Faults and Solutions
Noise:
A "squeaking" sound from the belt when the air conditioner is turned on, often caused by belt aging, excessive slack, slipping, or damage to the tensioner/idler pulley bearings. Inspection, adjustment, or replacement of the affected components is required.
The Air Conditioner not Cool:
If the belt breaks or slips severely, the compressor does not rotate, and the air conditioner does not cool, the belt needs to be replaced and the tension wheel and idler wheel need to be checked for normal operation.
Abnormal Water Temperature:
If the water pump belt is also driven by the same belt, belt slippage or breakage can cause poor coolant circulation and increase engine water temperature. It is necessary to check the water pump belt and tensioning device together.
Products Description

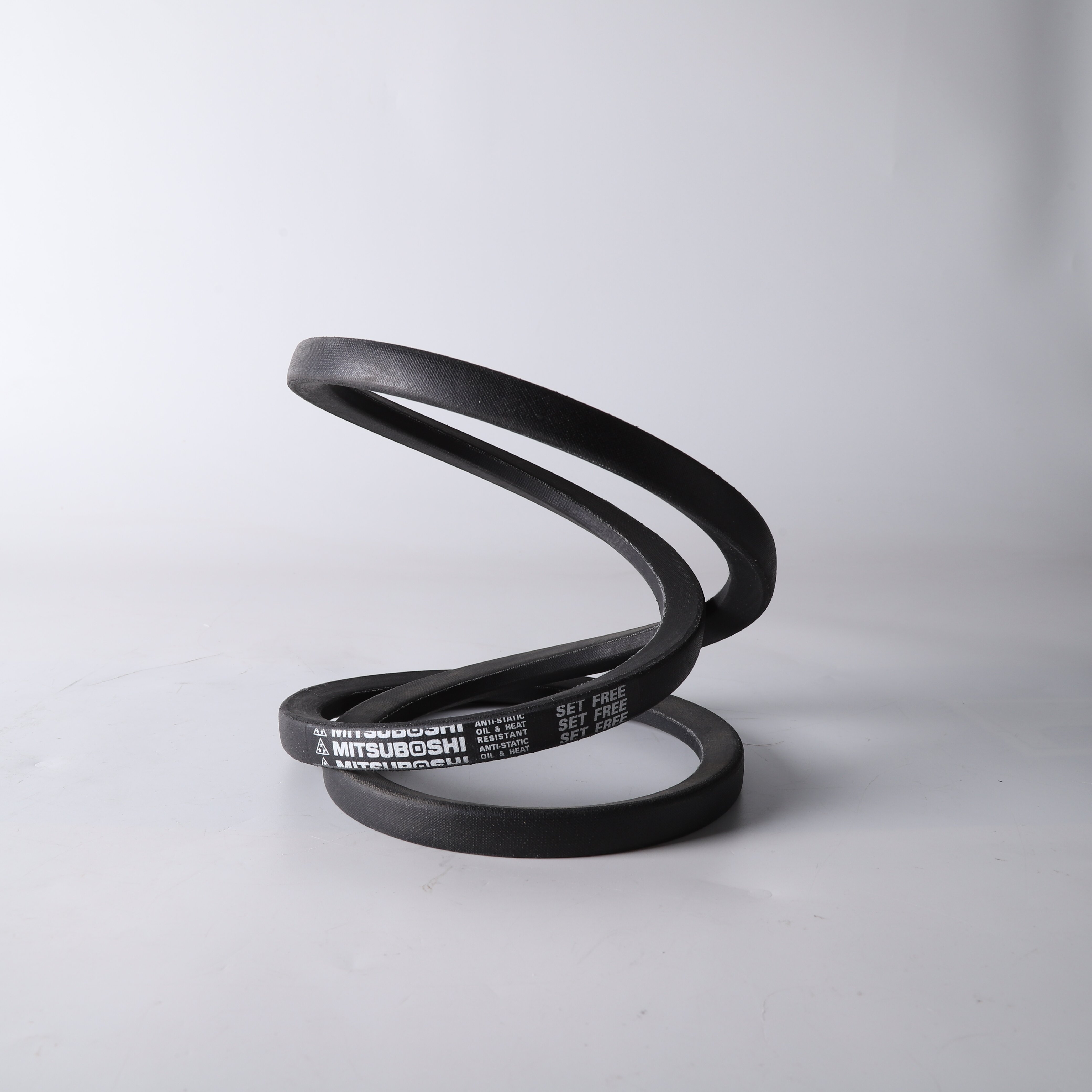

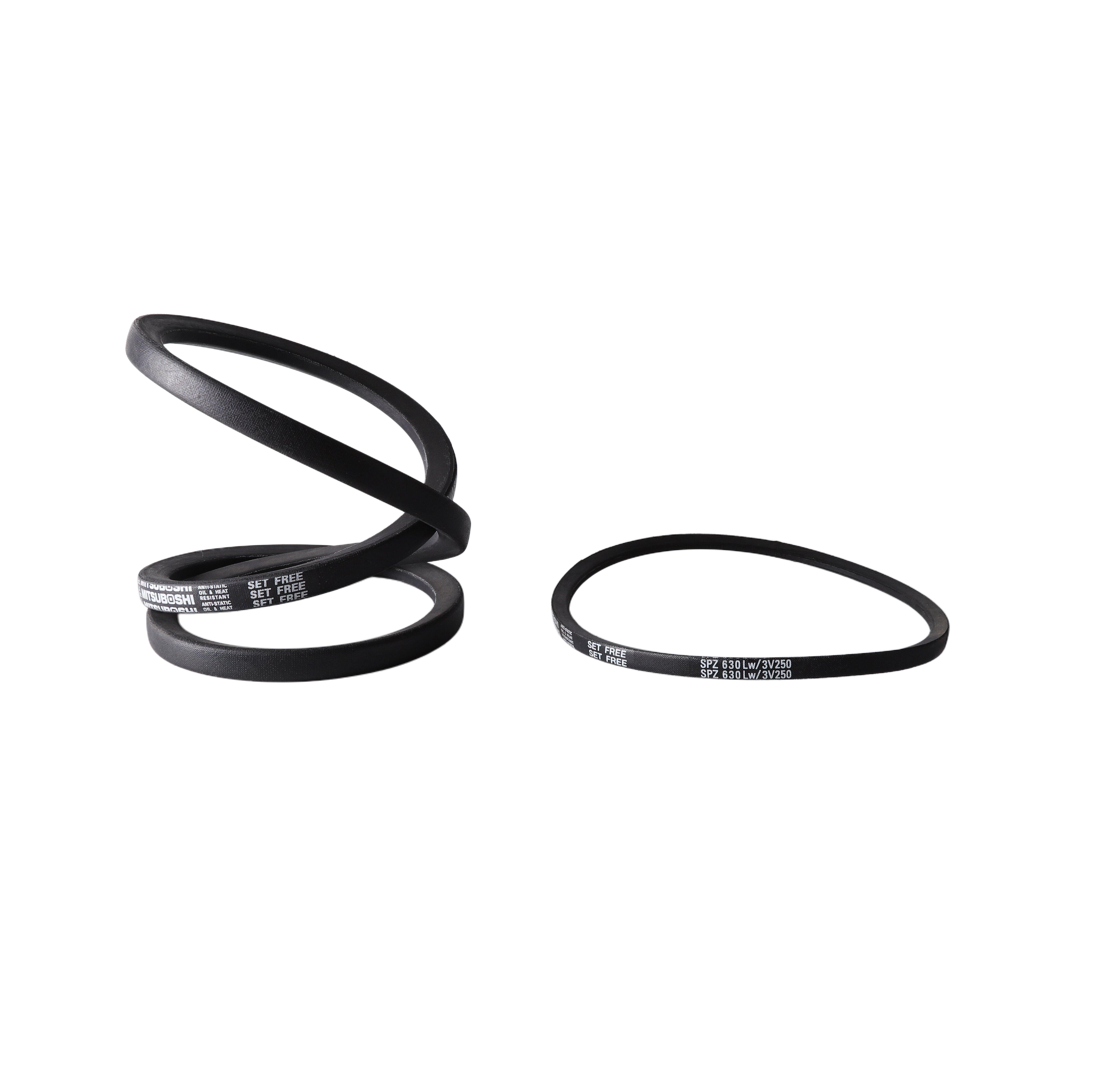

High-Performance Marine V-Belts for Mitsubishi SPB/SPZ Series Ensure uninterrupted operation of your vessel's HVAC systems with our premium-grade Marine V-Belts, specifically engineered for Accommodation Air Condition Fans and Galley Package Aircon units. Compatible with Mitsubishi SPB 1500Lw and SPZ 630Lw / 3V250 standards, these narrow-section wedge belts offer superior power transmission efficiency compared to classical V-belts.
Constructed from high-tensile rubber compounds, they are designed to withstand the harsh conditions of the engine room, including high temperatures, oil mist exposure, and constant vibration. The optimized wedge profile ensures maximum grip on the pulley, significantly reducing slippage and ensuring your air conditioning compressor and fans run at peak efficiency. Perfect for heavy-duty marine applications requiring reliable torque transfer and long service life.

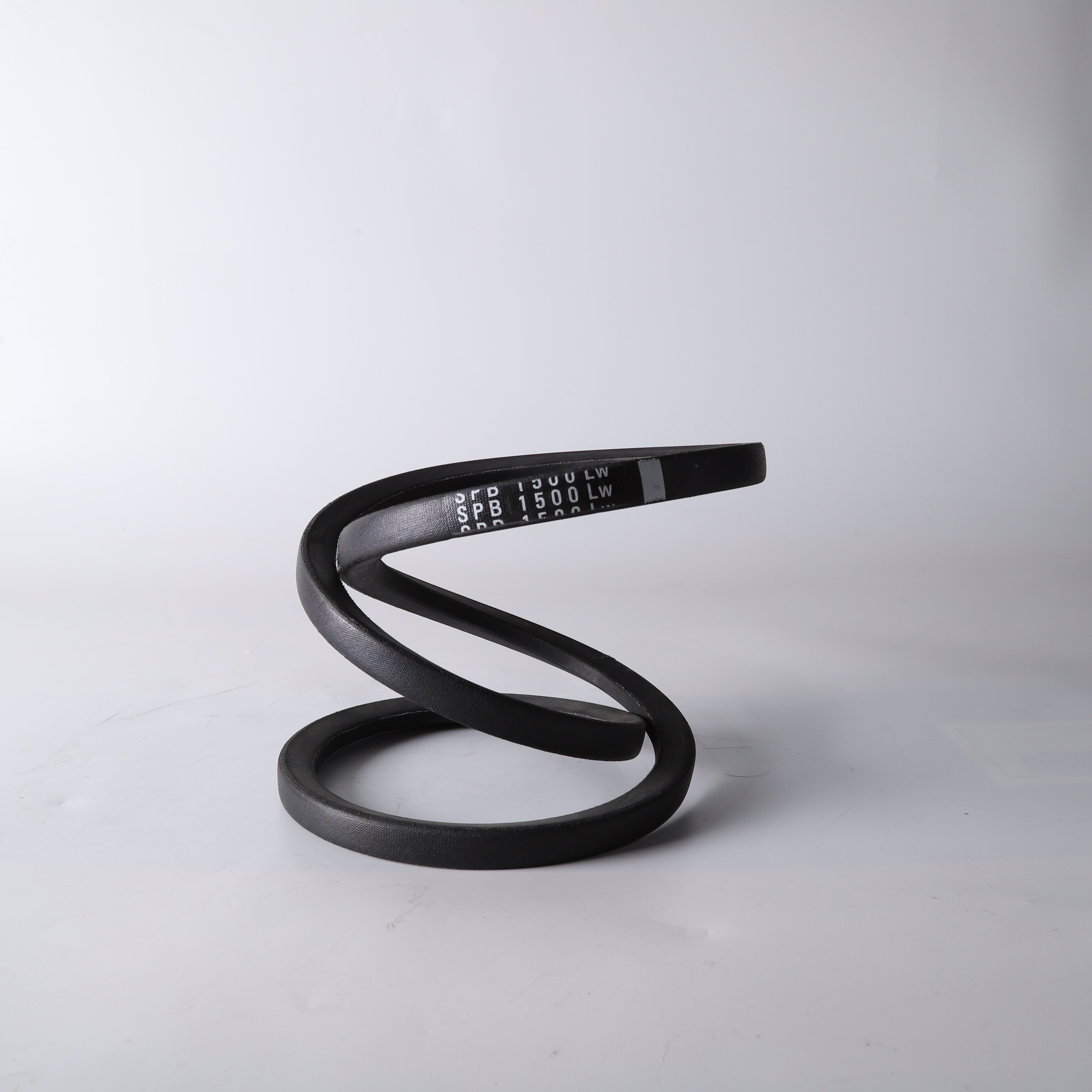

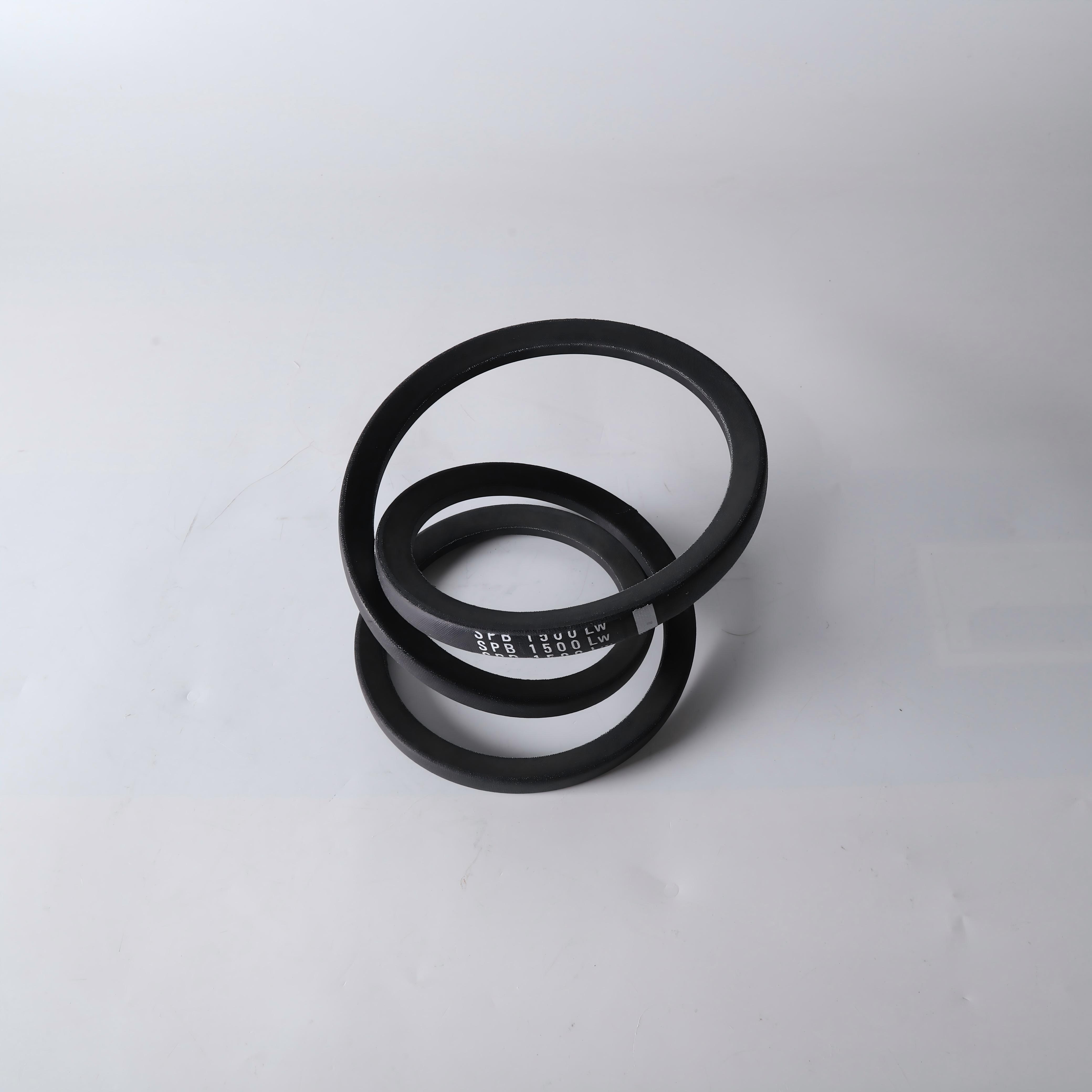

Reliable Replacement Belts for Shipboard Air Conditioning Systems Is your galley or accommodation air conditioning underperforming due to belt slippage? Our heavy-duty V-belts are the ideal replacement solution for worn-out drive belts on marine cooling fans and compressors. Featuring excellent resistance to heat, abrasion, and aging, these belts (Model: SPB 1500Lw & SPZ 630Lw) minimize maintenance downtime and extend the intervals between replacements.
Whether you are operating in tropical heat or freezing conditions, our V-belts maintain flexibility and tension stability. They are anti-static and oil-resistant, meeting strict marine safety standards. Don't let a broken belt compromise your crew's comfort—stock up on these essential spares for your main engine room facilities today.

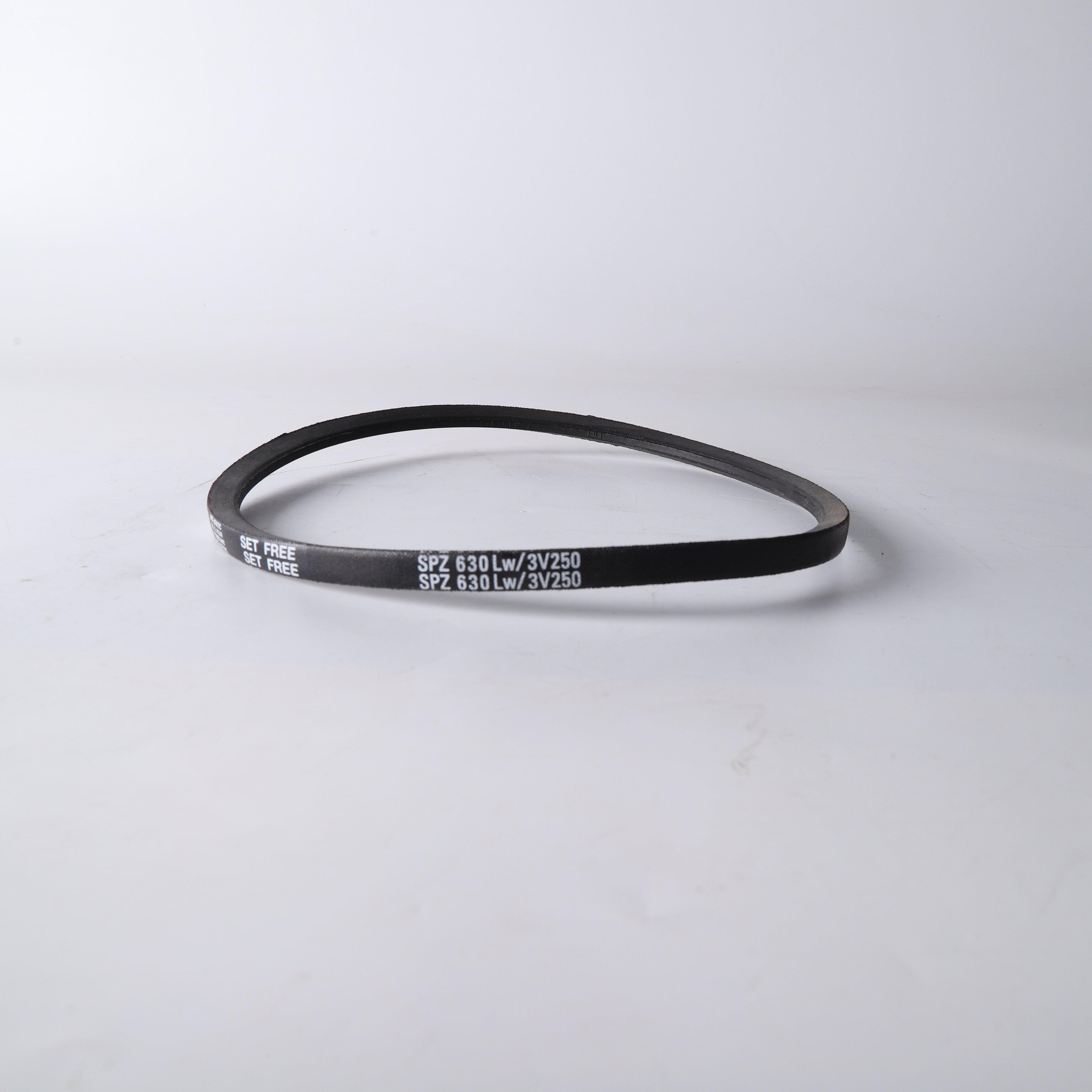

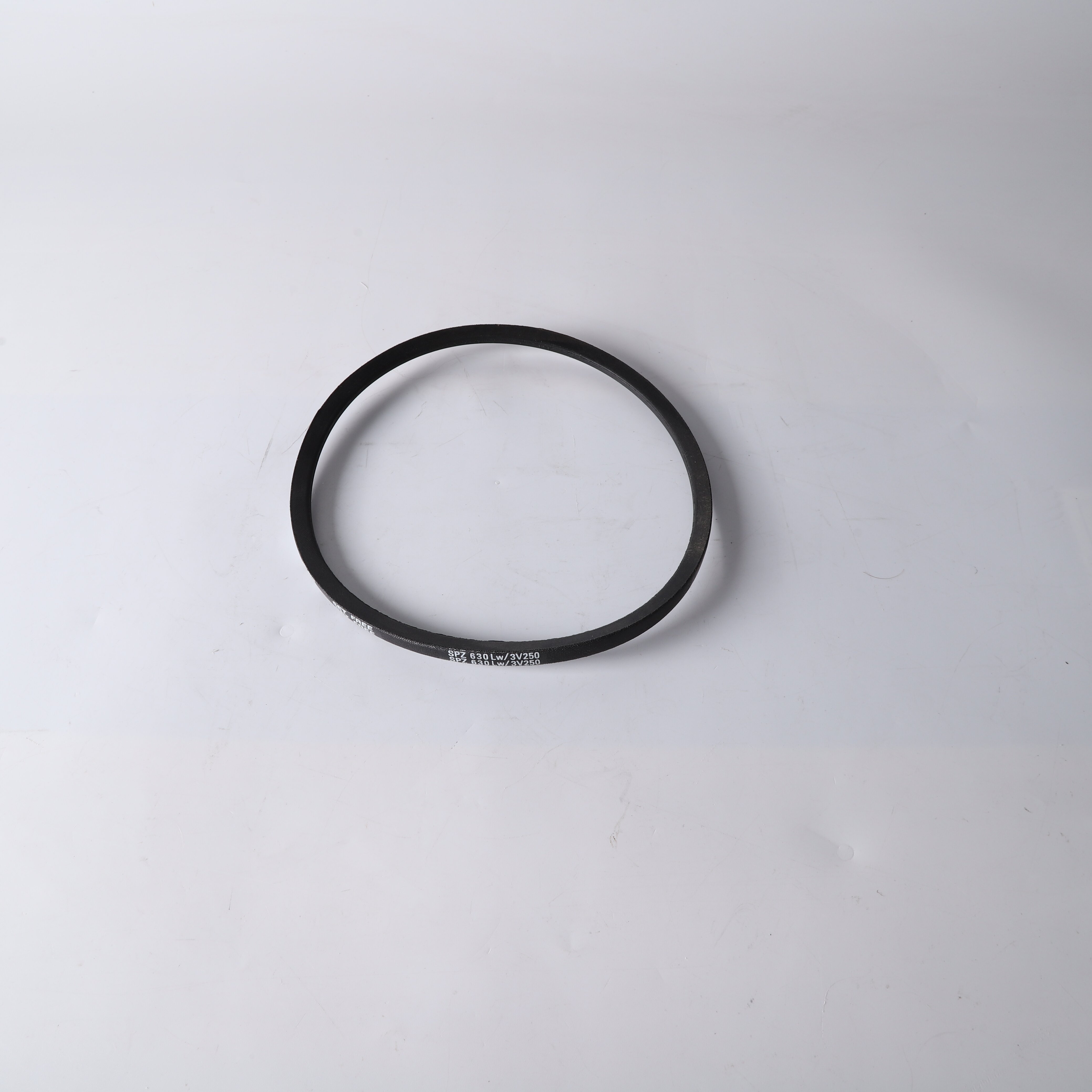

Precision Drive Belts for Marine HVAC & Galley Equipment This specialized V-belt series is customized for the critical auxiliary machinery on board, including Galley Package Aircon units and Accommodation Ventilation Fans. It serves as a direct fit for systems requiring 3V250 / SPZ 630Lw and SPB 1500Lw specifications.
Beyond air conditioning, these versatile belts effectively transfer crankshaft power to water pumps, alternators, and emergency generators. Their dimensional stability ensures they fit perfectly into standard pulley grooves, preventing "bottoming out" and reducing wear on your expensive equipment sheaves. Trust JIEXI's marine spare parts to keep your vessel's essential life-support systems running smoothly.
FAQ
Q1: How do I verify if the SPB 1500Lw or SPZ 630Lw V-belt is the correct size for my compressor?
A: The most accurate way is to check the part number printed on your existing belt. "SPB" and "SPZ" refer to the wedge profile (top width and height), while "1500Lw" and "630Lw" indicate the pitch length in millimeters. If the marking is worn off, measure the top width of the belt (SPZ is approx 9.7mm, SPB is approx 16.3mm) and the outside length. You can also consult your engine or compressor manual under "Spare Parts List."
Q2: Are these marine V-belts resistant to oil and heat in the engine room?
A: Yes, our marine V-belts are manufactured using high-grade synthetic rubber compounds (often EPDM or Chloroprene) specifically designed for engine room environments. They offer superior resistance to oil, grease, heat (typically up to 70°C-90°C), and ozone, preventing premature cracking and hardening that common industrial belts might suffer from at sea.
Q3: What is the recommended tension for the Galley Package Aircon fan belt?
A: Proper tension is critical. A general rule of thumb is that the belt should deflect about 10-15mm when pressed firmly with your thumb at the center of the longest span. However, for precise tensioning, we recommend using a belt tension gauge. If the belt is too loose, it will slip and squeal; if too tight, it may damage the compressor or fan bearings.
Q4: Can I use a standard industrial V-belt to replace a marine-grade belt?
A: While dimensions might appear similar, we strongly recommend using marine-grade belts. Marine belts are built to withstand higher ambient temperatures, salt-laden air, and constant vibration typical of a vessel's operation. Standard industrial belts may fail prematurely in these conditions, leading to unexpected downtime of your accommodation air conditioning.
Q5: Do you offer bulk purchasing for fleet maintenance supplies?
A: Yes, JIEXI Fast Marine Service specializes in supplying ship owners and management companies. We offer competitive pricing for bulk orders of V-belts (SPB/SPZ series) and other marine spare parts. We can ship globally to any port. Please contact our sales team with your vessel's equipment list for a customized quote.
